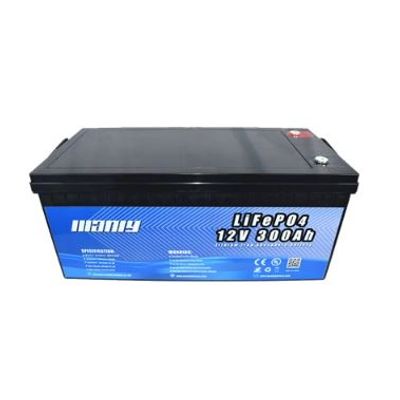

MANLY Battery - Model MLP12300A - 12V 300Ah Lithium Battery for Deep Cycle Applications
The MANLY Battery 12V 300Ah LiFePo4 lithium battery is engineered for superior performance in deep cycle applications, replacing traditional lead-acid batteries. This 12.8V battery, known for excellent cycle life and efficiency, features a capacity of 300Ah to cater to off-grid solar systems, RVs, marine, camping, and backup power solutions. Its LiFePo4 technology ensures enhanced safety and reliability, reducing risks associated with over-charging and over-discharging. With an expansive operational temperature range of -20°C to +75°C and a high discharge capacity, it's suitable for varied environments, including military and aerospace sectors. The built-in Battery Management System (BMS) offers multi-faceted protection, including overcharge, over-discharge, and short circuit safeguards. Allowing series and parallel connections, it provides customization options for voltage, capacity, and dimensions, meeting diverse client needs across industrial applications.
Reliable 12V 300Ah lithium battery is hot-selling 12V lithium battery in MANLY Battery. We use LiFePO4 technology in 12V 300Ah lithium battery, offering 120 months warranty and various qualification classifications.
- Model : Number: MLP12300A
- Nominal Capacity: 300Ah
- Nominal :Voltage: 12.8V
- MAX Charge Voltage: 14.6V
- MAX Charge Current: 100A
- 5-year warranty & 24-hour timely service
- The Max connection in series / in parallels: Support 4 series and 4 parallel
- Customization Support: Including voltage, capacity, current, size, appearance, etc.
- Nominal Voltage :12.8V
- Nominal Capacity :200AH
- Brand Name :MANLY Battery/OEM
- Cell Type :3.2V LiFePO4 Battery Cell
- Full Charge Voltage :14.6V
- Discharge-end Voltage :10.0V
- Standard Charging Current :40A
- Discharging Current (Max. continue) :100A
- Discharging Current (Peak) :300A(＜1S)
- Protection Functions of BMS :Over-charge, over-discharge, over-voltage, over-current, short circuit, temperature, etc.,
- Battery balancing management
- Optional communication protocol (CAN/RS485/Bluetooth etc.)
- Battery Shell :ABS Plastic :Metal
- Battery Size :522*269*220MM :OEM
- Battery Weight :About 22.3KG :About 25.5KG
- Battery Connector :M8/OEM :OEM
- Waterproof level :IP66+ :IP65+
- Communication Protocol :RS485, CAN, Bluetooth, or others can be added upon request
- Charge Temperature :0℃~+45℃
- Discharge Temperature :-20℃~+75℃
- Cycle Life :≥5,000 times, 80% of DOD
- Warranty :5 years, longer can be negotiated
