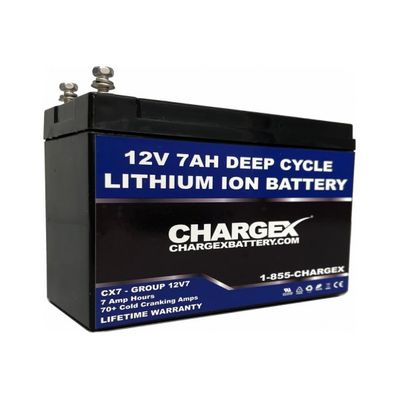

CHARGEX - Model CX7 - 12-LIB-7 - 12V 7AH Lithium Ion Battery
The Chargex CX7 - 12V 7AH Lithium Ion Battery features the latest and most advanced Lithium Iron Phosphate - LiFePO4 Battery Technology. Designed for Deep Cycle applications, the CX7 is engineered with our - High Output 3.2V Stainless Steel LiFePO4 Cells that are bolted together for Rigid Strength and Current Conductivity vs. the tab welded method. The CX7 is Plug and Play for any application that currently uses lead acid, gel or agm batteries.
The fully automatic Built In Battery Management System provides cell balancing, over charge or over discharge protection, short circuit and reverse polarity protection all making the Chargex CX7, one of the world`s safest and most advanced lithium batteries.
POWER & ENERGY
THE ELECTRIC ADVANTAGE
- Nominal Voltage : 12.8V
- Charge Voltage : 14.4V - 14.6V
- Peak Discharge (5 Sec) : 70A
- Continuous Charge / Discharge Rate : 7A
- Capacity (amp hours) : 7AH
- Capacity (watts) : 84W
- Chemistry : Lithium Iron Phosphate (LiFePO4)
SIZE & WEIGHT
ADVANTAGE
- Model : CX7
- Group Size : N/A
- Weight : 1.8 Lbs
- Length : 5.8"
- Width : 2.5"
- Height : 3.75"
TECHNOLOGY
ADVANTAGE
- Usable Capacity (AH) : 7AH
- Depth of Discharge : >100% DOD
- Reserve Minutes @ 7A : 60 min
- Self Discharge : <3% per mo
- Chemistry : Lithium Iron Phosphate (LiFePO4)
- Cell Type : Cylindrical
- Modular : Series or Parallel Connection
SAFETY & PROTECTION
ADVANTAGE
- Built in Automatic Battery Protection System : Internal
- Automatic Low Voltage Disconnect : 8V
- Automatic Short Circuit Protection : Instant
- Automatic Over Voltage Protection : 15.8V
- Automatic Reverse Polarity Protection : Instant
- Internal Cell Thermal Safety Fuse : Yes
- Flame Retardant Electrolyte : Yes
- Length Way Circuit Boards : Yes
- Automatic Internal Cell Balancing : Yes
- Automatic Fault Recovery : Yes
- Explosion Proof Stainless Steel Cells : Yes
