XD Battery - Model 150AH -12V Lifepo4 Lithium Battery Pack for RVs, Caravans, Motorhomes
Nominal Voltage: 12.8 V, Nominal Capacity: 150 Ah, Energy: 1920 Wh, Resistance: ≤0.5mΩ, Efficiency: 99%, Self Discharge: ≤3% per month.
Charge Specification
Recommended Charge Current: 25A - (Range: 0.2C-0.5C)
Maximum Charge Current: 100 A (1C)
Recommended Charge Voltage: 14.6 V
BMS Charge Voltage Cut-Off: 14.8 V (3.9 ±0.025 vpc) (1.1 ±0.4 s)
Reconnect Voltage: 14.2 V (3.8 ±0.05 vpc)
Balancing Voltage: 13.62 V (3.6 ±0.025 vpc)
Discharge Specification
Maximum Continuous Discharge Current: 100A (150A BMS)
Peak Discharge Current: 250A(3-5s)
BMS Discharge Current Cut-Off: 450A(300ms)
Recommended Low Voltage Disconnect: 10.5 V
BMS Discharge Voltage Cut-Off: 9.4 V (2.0 ±0.08 vpc) (140 ±60 ms)
Reconnect Voltage: 10.2 V (2.3 ±0.1 vpc)
Short Circuit Protection: 200-300 µs
Temperature Specification
Discharge Temperature: -4 to 130 ºF (-20 to 55 ºC)
Charge Temperature: 32 to 130 ºF (0 to 55 ºC)
Storage Temperature - 1 month: -4 to 113 ºF (-20 to 45 ºC)
Storage Temperature - 1 year: 32 to 95 ºF (0 to 35 ºC)
BMS High Temperature Cut-Off: 176 ºF (80 ºC)
Reconnect Temperature: 122 ºF (50 ºC)
BMS Low Temperature Cut-Off (Charging): 32 ºF (0 ºC)
Reconnect Temperature (Charging): 41 ºF (5 ºC)
BMS Overview
Over Current Protection: yes
Under Voltage Protection: yes
Over Voltage Protection: yes
Overload Protection: yes
High Temperature Protection: yes
Low Temperature Protection: 32 ºF (0 ºC) / 41 ºF (5 ºC)
Short Circuit Protection: yes
Mechanical Specifications
Dimensions (L x W x H): 12.80 x 6.70 x 8.66” (325*170*220mm)
Weight: 30.84lbs (14kg)
Terminal Type: M8 (20mm)
Terminal Torque: 10 ~12 N-m
Case Material: ABS
Enclosure Protection: IP65
Cell Type - Chemistry: Prismatic - LiFePO4
Certifications
MSDS Datasheet: MSDS
UN38.3: DG61
CE Certification: EN61000-6-1, EN61000-6-3
ROHS Certification: ROHS
FCC Certification: Part15B
IEC62619 documentation or 49 CFR: IEC62619 / 49 CFR 173.185
IMDG Code: UN3840 / Class 9

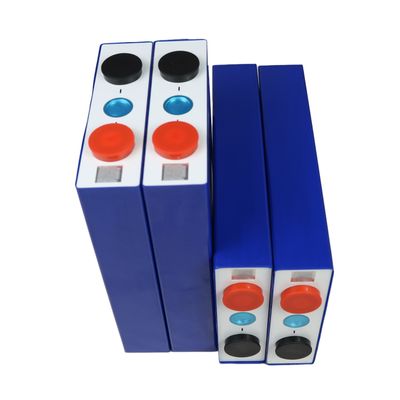

Cells / Internal Arrangment
Brand: EVE Energy Co., Ltd
Product: Prismatic Aluminum-clad LFP Battery
Model: LF105
Specification: 3.2 V / 50 Ah
Cell / BMS Impact Protection: Large Foam Inserts as shown
Cable Size: All cable sizes capable of meeting all specs set forth by BMS
Cable Color: Color coded (Red/Black/Blue)
Low Temperature Probe: Probe placed on cells / wire attached to BMS
BMS
Model: 3SABM0-H02 (LFP-4S-100A)
Maximum Continous Discharge Current: 100A (BMS support Max continous current 100A )
Cell Balancing: 3.4V (13.6V)
Over Current Protection: yes
Under Voltage Protection: yes
Over Voltage Protection: yes
Overload Protection: yes
High Temperature Protection: yes
Low Temperature Protection: 0C Disconnect, 5C Reconnect
Short Circuit Protection: yes
Battery Case
Dimensions (L x W x H): 12.80 x 6.70 x 8.66” (325*170*220mm)
Terminal Type: M8 (20mm)
Terminal Torque: 10 ~12 N-m
Case Material: ABS
Enclosure Protection: IP65
Packaging
Dimensions (L x W x H): 24.21 x 12.60 x 12.99" (615*320*330mm)
Weight: 35.24 lbs (16 kg)
