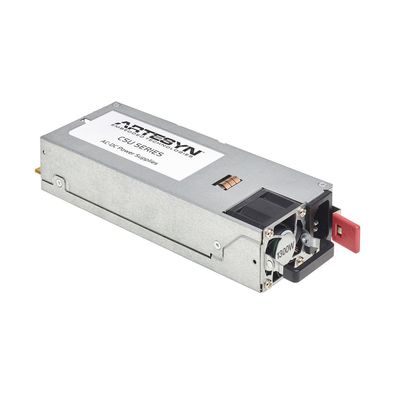

Advanced Energy - Model Artesyn - CRPS - CSU1300AP Series -1300 W CRPS-Type Power Supply System
The CSU1300AP power supply is housed in a 1U high rack-mount enclosure measuring just 2.89 x 7.28 inches (73.5 x 185.0 mm). This form factor is significantly narrower and shorter than that of similarly rated earlier generation power supplies, freeing up valuable system space. The CSU1300AP power supply is fully digital and compatible with Advanced Energy`s universal PMBus® graphical user interface, allowing control via an integral I2C interface using the industry-standard PMBus communications protocol. Each power supply generates a main output of 12 VDC for feeding downstream DC-DC converters in systems using distributed power architectures.
Most popular related searches
power supply system
AC-DC power supply
DC power supply
DC/DC converter
power supply unit
DC power unit
distributive power
distributed power
power factor
power generation
- 100°C Baseplate temperature
- 1300W output power
- 48VDC Input
- Unencapsulated 2.3" x 2.4" x 0.50" pkg.
- Input Range 90-264 VAC
- Input Frequency 47 - 63 Hz
- Hold-up Time 12 ms
- Power Factor >0.98 at 50% load
- Input Range 165-320 VDC
- Output Ripple 120 mVp-p
- Load Sharing Active load sharing with 5.0% at full load
- Output Power 1300W continuous
- Enable (on/off)
- Industry standard pinout
- Output loadsharing
- Thermal protection
- Trim feature, both rails
- Efficiency Platinum level
- Remote On/Off Active Low
- Alert Active Low
- Protection OVP, OCP, Short Circuit, OTP
- Power Good Active High
- Output Power (W): 1300
- Length (Inches): 7.28
- Width (Inches): 2.89
- Height (Inches): 1.57
- Mounting Type: Rack-mount
- Minimum Output Current (A): 0
- Maximum Output Current (A): 106.2
- Output Voltage Range (V): 11.4V to 12.8V
- Minimum Output Power (W): 0
- Maximum Output Power (W): 1300
- Minimum Input Voltage (V): 90
- Maximum Input Voltage (V): 264
- Warranty (Years): 2
