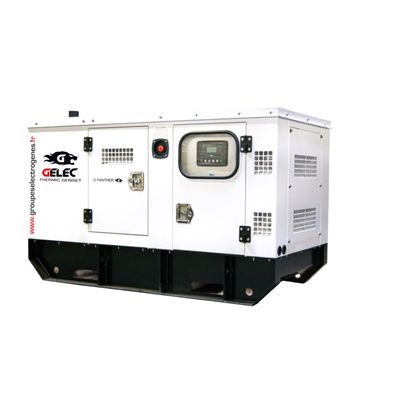

Gelec - Model PANTHER-14YD -14 KVA Diesel Generator
PRP: Prime Rated Power: 13 kVA / 10 kW. ESP: Emergency Standby Power: 14 kVA / 11 kW. Voltage: 230-400V. Power factor: 0.8 (cosΦ). Rotation speed: 1500 rpm. Number of phases: 1 or 3. Frequency: 50 Hz. Fuel tank autonomy at 75%: 22 hours.
ESP Power 13,8 kVA
PRP Power 12,5 kVA
Rotation speed 1500 rpm
Fuel tank capacity 100 Liters
Number of cylinders 4
Autostart integrated
Available in Single phase & Three phase 54,2/18,1 A
Alternator specifications :
Excitation system : Self Excited
AVR : Stamford
Voltage regulation type : electronic
Engine specifications :
Number of cylinders : 4
Governor type : mechanical
Specifications : 4-cycle engine, direct fuel injection , liquid-based cooling
Displacement : 1,8 L
Maximum standby power at rated rotation 1500tr/min : 14 kW
Maximum standby power at rated rotation 1500tr/min : 19,01 Cv
Compression ratio : 18:01
Engine starting type : electrical 12V
Air inlet system : atmospheric
Alternator specifications :
Excitation system : Self Excited
AVR : Stamford
Voltage regulation type : electronic
This diesel generator, available in single-phase and three-phase versions, provides maximum output of 13.8 kVA. It is ideal for providing lighting on construction sites and is easily able to power accommodation facilities, modular cabins and site huts. Electrical intensity can reach 58.5 amps in the three-phase version.
This 12.5 kVA (continuous power) industrial genset is enclosed and soundproof. It benefits from a Deep Sea digital controller and integrated automatic transfer switch.
Cogeneration system option: simultaneous production of thermal and electrical energy. B100 option: uses vegetable or recycled oil as fuel.
This genset is equiped with four poles thermal magnetic circuit breaker with ajustable differential switches, with a DEEPSEA control panel and with an integrated automatic transfer switch system.
With a robust design, our diesel gensets produce reliable electrical power.
OPTIONS:
For enhanced mobility it can be mounted on a trailer.
The B100 option enables the genset to operate using vegetable oil instead of diesel.
1-year warranty or 500 hours, whichever comes first.
