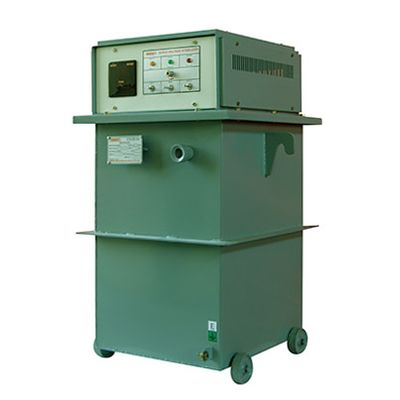

15 kVA to 200kVA Automatic AC Voltage Stabilizer Single Phase - Oil Cooled
These High-end Single Phase Servo Voltage Stabilizers are designed with AC servo based dimmer control option that can be managed by the controller. They are provided with shot circuit and overload protection features as they come with reliable MCBs. They ensure complete protection against under and over voltage. In addition to this, digitally controlled power contactor is installed to ensure over current trip protection. Trip and fault status can be seen by visual fault frame of LCD. Hard-wearing, power-saving and compact designs with advanced features of our 15 KVA Single Phase Stabilizer make us a trusted Manufacturer and Supplier of the market.
- Overload Cut-Off and Short Circuit Protection.
- Low / High Voltage (out of input range) Alarm and / or Cut-Off.
- High Temperature Alarm and / or Cut-Off.
- Spike and surge protection
- Temperature Meter, Digital Ammeter, Digital Voltmeter.
- Stabilizer by Pass System
- Remote control of stabilizer (with wires)
Rating: 15kVA to 200kVA
Input Voltage Range: 140-270, 150-270, 160-270, 180-270 or custom built
Over-Load Capability: up to 200% momentarily
Output Voltage: Standard 220 / 230 / 240 Volts or as per customer requirement
Frequency: 47Hz-63Hz
Line & Load regulation: +/- 1%
Duty Cycle: Continuous 24x7
Wave Form Distortion: Nil true to input
Response Time: Less than 10ms
Correction Speed: Up to 70V per sec. (Depend on Input Voltage range & capacity
Technology: Torridly wound Variable Auto Transformer for Linear control and
greater efficience. (Internationally accepted)
Drive: Direct AC drive for fastest voltage correction and durability
(without any chain, sprockets and rail of pulleys)
Suitability: Suitable for all power factor loads
Additional Facility: Manual Operation
Cooling: Natural Oil Cooled
Efficiency: 97% to 99% (Depend on Input Voltage range & capacity)
Ambient Temperature: Wide ambient temperature operation from -20°C to 50°C.
Class of Insulation: A Class
No Load Loss: Less than 0.4 %
Winding & Wiring Material: Copper EC grade (99.9% Pure)
Input / Output Termination: Connectors/Copper Bus Bar
Degree of Protection: IP - 30 - IP - 55
Installation: Indoor type (out door type also available)
