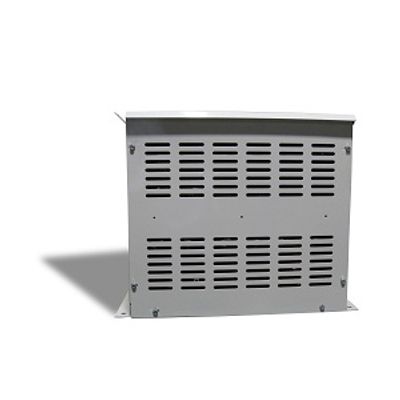

Electric Power Inc. - 15kVA 3 Phase Isolation Transformer
Electric Power Inc. offers a 15kVA 3 Phase Isolation Transformer, designed for industrial and commercial electrical distribution needs. This transformer features a primary input voltage of 600 volts and a secondary output voltage of 208 volts, utilizing copper conductors for optimal conductivity. It allows for adjustments with primary taps at 2.5% and 5.0%, operating at a frequency of 60Hz. The insulation is rated at 220°C, with a temperature rise of 150°C, providing efficient thermal management. It possesses an impedance of 5% and an impulse level of 10kV B.I.L., ensuring stability and reliability. These transformers cater to diverse configurations and are suitable for various lighting and power load applications, offering versatility and dependable performance in electrical distribution systems.Most popular related searches
isolation transformer
electric power
electrical power
transformer isolation
distributed electricity
electrical system
distribution transformer
Phase: Three
Primary: 600 Volt
Secondary: 208 Volt
Conductor: Copper
Primary Taps: 2.5%, 5.0 %
Frequency: 60Hz
Insulation Class: 220°C
Temperature Rise: 150°C
Impedance: 5%
Impulse Level: 10kV B.I.L
* Other voltages are available.
