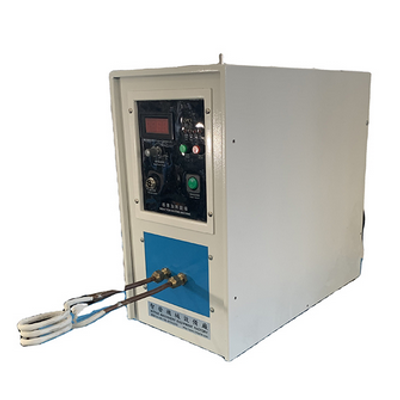

Hitfar - Model ZG-HR5 - 15KW 30-lOOKHz Water-Cooled Type High Frequency Induction Heating Brazing Machine
Model No.:ZG-HR5 (2 Types for Choice: Unit or Split Type). Input Power: 220V-1P. Output Working Power: 5-15kw adjustable. Main Function:heat treatment of small metal parts, brazing and welding of tools and blades and pi pes etc. Main Advantage: heating speed very quick, temperature can reach to 2500C degrees. Main Components: Induction Heating Controller (+ Transformer) + Induction Coil.
Most popular related searches
- Take Brazing and Welding as an example:
- High frequency Induction heating brazing for all kinds of small metal parts.
- Welding of diamond heads, welding of carbide saw blades and welding of diamond tools, abrasive tools and drilling tools.
- Welding of cemented carbide tools for machining. Welding of cutting tools such as turning tools, planers, milling cutters, reamers, etc.
- Welding of mining tools, such as "one" bit, column tooth bit. dovetail briquette bit, riveting rod bit, welding of various shearer picks and various road-header picks.
- Water-cooled induction heater is used for welding of various woodworking tools, such as welding of various woodworking planers, milling cutters and various woodworking drills.
- Output working frequency can reach tolOOKhz according to the loading.
- 100% loading duly, which can be working 24 hours per day.
- Heating Power can be adjusted from 5kwtol5kw.
- Heating time and retaining time can be set up from 1 seconds to 999 seconds.
- Water cooling type via chiller or small pump and tank
- Net weight only around 18kgs. easy to transportation.
- Auto-protection functions be equipped like over current, over power, water failed, etc.
- High frequency induction heater can be worked in 2 modes: manually or automatically by setting
- INPUT POWER: 220V-1P. 50/60HZ
- WORKING VOLTAGE RANGE: 180V-240V
- OSCILATION FREQUENCY: 30-100KHZ
- HEATING TIME SETTING: 1-99S OR N
- RETAIN TIME SETTINC: 1-99S OR N
- MAXI WORKING. POWER: 5-15KW adjustable
- LOADING: 95%
- COOLING WATER: 4L/min(0.2mpa}
- COOLING WATER TEMPERATURE 5-50°C
- WORKPIECE BRAZINC/SOLDERINC/H EATING
- APPLICATION: HEATING/BRAZING/SOLDERINCyWELDINC
- GROSS WEIGHT: 30KGIINCLUDING WOODEN CASE)
- PACKAGE DIMENSION: 600'350'550mm3
