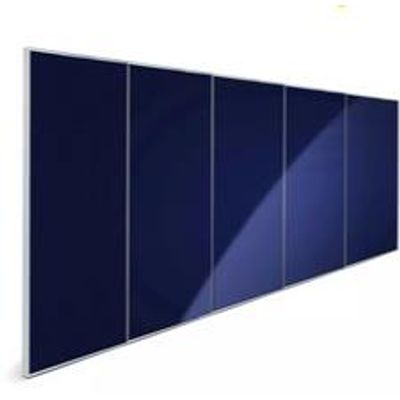

Micoe - 15m Large Scale Solar Heating Plant Collector
15m large scale solar heating plant collector -Blue Titanium Coating.
Most popular related searches
large-scale solar plant
solar heating
heating plant
solar water heating collector
solar water heating
solar collector
solar plant
solar collector heat
solar water
solar water collector
- Competitive cost of big project
- Special for space heating projects，the output temperature can be over 95℃
- η0,b : 91.8%, the stagnation temperature is over 200℃
- High pressure resistance, design pressure 10bar，testing pressure 16bar
- Gross area：15.02㎡
- Aperture area：13.95㎡
- Dimension：5960*2520*166（mm）
- Gross Weight：~307kg
- Glass：Woven tempered glass
- Thickness of glass：3.2mm
- Material of collecting firm：Aluminum，0.4mm
- Coating: Blue Titanium coating.
- Bottom Insulation：60mm Fiberglass cotton with two layers of Aluminum foil.
- Side insulation: 26mm Fiberglass cotton with two layers of Aluminum foil.
- Quantity of horizontal branch pipes：24 pcs,copper
- Diameter of horizontal branch pipes: φ8*0.4mm
- Diameter of vertical main pipes：φ42*1mm
- Volume of collector inside space：11.82L
