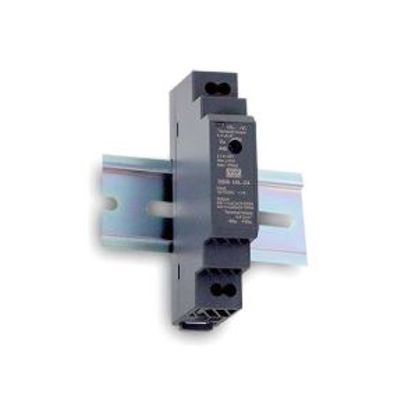

MEAN WELL - Model DDR-15 Series -15W DIN Rail Type DC-DC Converter
DDR-15 series is a 15W DIN Rail type DC-DC converter with main features including DIN rail-type easy installation, ultra slim width (17.5mm), 4:1 ultra wide input voltage, -40~+85"C wide operating temperature, 4KVdc I/O isolation, adjustable output voltage (± 10%) and full protective functions...etc. This series has two input options: 9-36V/18-75V and various output options: 3.3V/ 5V/ 12V/ 15V/24V and can be used for industrial control, security control, communication system and other fields. Suitable applications are DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable...etc.
Most popular related searches
- Width only 17.5mm (1SU)
- 4:1 ultra wide input range
- -40~+85flC wide working temperature
- No minimum load required
- DC output adjustable (±10%)
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Input under voltage protection
- 4KVdc I/O isolation(Reinforced isolation) ' 3 years warranty
- Industrial control system
- Semi-conductor fabrication equipment
- Factory automation
- Electro-mechanical
- Wireless network
- Telecom or datacom system
