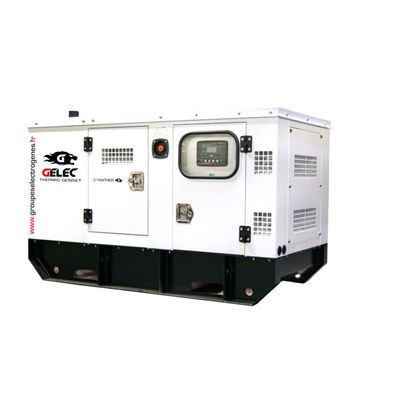

Gelec - Model PANTHER-18YD -17 KVA Diesel Generator
PRP: Prime Rated Power: 16 kVA / 12,80 kW. ESP: Emergency Standby Power: 18 kVA / 14,1 kW. Voltage: 230-400V. Power factor: 0.8 (cosΦ). Rotation speed: 1500 rpm. Number of phases: 1 or 3. Frequency: 50 Hz. Fuel tank autonomy at 75%: 19 hours.
ESP Power 17 kVA
PRP Power 15 kVA
Rotation speed 1500 rpm
Fuel tank capacity 100 Liters
Number of cylinders 4
Autostart integrated
Available in Single phase & Three phase65/21,7 A
Alternator specifications :
Excitation system : Self Excited
AVR : Stamford
Voltage regulation type : electronic
Engine specifications :
Number of cylinders : 4
Governor type : mechanical
Specifications : 4-cycle engine, direct fuel injection , liquid-based cooling
Displacement : 2,156 L
Maximum standby power at rated rotation 1500tr/min : 17 kW
Maximum standby power at rated rotation 1500tr/min : 23,12 Cv
Compression ratio : 18:01
Engine starting type : electrical 12V
Air inlet system : atmospheric
This generator can also be combined with a lighting tower to provide light for night construction work. It can be fitted with a socket board to simplify the utilisation of a wide variety of tools.
This 15 kVA (continuous power) genset is available in single-phase and three-phase versions.
In addition to the soundproof enclosure, it is also fitted with a Deep Sea Digital Controller and integrated automatic transfer switch.
OPTION :
B100: Diesel can be replaced by recycled oil.
This machine is covered by a 1-year warranty or 500 hours, whichever comes first.
This genset is equiped with four poles thermal magnetic circuit breaker with ajustable differential switches, and DEEPSEA control panel with an integrated automatic transfer switch system.
With a robust design, our diesel gensets produce reliable electrical power.
