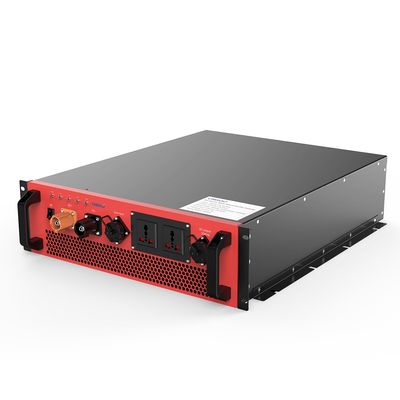

CNBOU - Model B48R6000-1S | B48R6000-2S - 19 Inch Rack Mount Inverters 6000W Pure Sine Wave
BR series (3U) 19″ Rack Mount 6000W heavy-duty pure sine wave power Inverter with bypass function. This 6000W Rack Mount Inverter is neatly and out of the way on the rack. It will automatically switch to utility power when utility input is detected. Professionally designed for use on mobile vehicles and backup power supplies. Customized terminal blocks are available.
The BR series (3U) 19″ Rack Mount Inverters 6000W are specially designed for industrial applications, suitable for mounting in a standard rack, wall, or on a desktop. The AC output provides a 50A aerial socket to support a single 6000W load (linear load) for a long time running, suitable for complex environments from -40°C to +50°C. DC uses high-quality easy-to-install connection terminals, no additional locking device is required. They have a built-in bypass module (ATS) to select utility or inverter priority. The default is utility priority, when no utility power, it will automatically switch to the inverter to provide power to the load from the battery. This (3U) 19″ Rack Mount Inverters 6000W supports a variety of multi-voltage input, from 24 volts to 230 volts. widely used in communication emergency vehicles, refrigerated trucks, rescue vehicles, ambulances, yachts, and communication stations. Also suitable for 6000W off-grid solar system, which can be combined with MUSEII series MPPT solar charge controller and BL series LiFePO4 battery to form a complete off-grid solar system. Special connection terminals are available for customization.
- Provide 24VDC/48VDC/72VDC/96VDC/110VDC/230VDC system voltage.
- Low standby and overhead currents, 24VDC/48VDC system respectively 2A/1A. No-load current about 48 Watt.
- 6000W full power long time running at a low-temperature design.
- The Bypass model supports 25amp current via relay.
- DC low and over-voltage protection, over-load protection, over-temperature protection, and short circuit indication.
- Max 94% conversion efficiency via 48VDC system.
- Provide grid and battery priority customization before shipping. Default is grid priority.
- Easy to install and support Rock Mount, Wall Hanging, and on the desktop.
- Provide a remote control panel. (optional)
- No static or humming noises.
- Two-year warranty and tech support. (CNBOU Products Support Center)
- Standard (3U) 19″ Rack Mount Inverters 6000W MOQ <10 units about 10-20 working days.
- Standard (3U) 19″ Rack Mount Inverters 6000W MOQ <100 units about 10-30 working days.
- Standard (3U) 19″ Rack Mount Inverters 6000W MOQ >100 units about 30-60 working days.
- OEM customization consulted according to customer requirements.
- GB/T19001-2016 IDT ISO9001:2015.
- Standard high-quality components.
- Quality inspection of the 10 processes of the assembly line.
- PCB ultrasonic cleaning and control card Three anti-paint protection.
- 100% full power 30 minutes aging.
- Before packing all function testing, including sine wave, low/over-voltage, short circuit, and bypass function.
