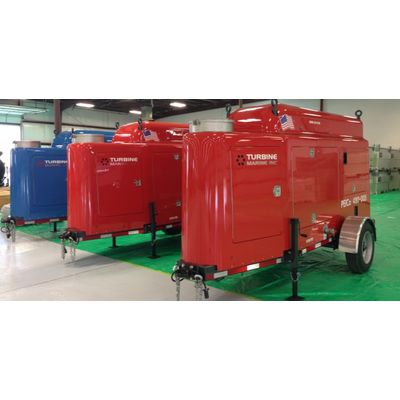

Turbine Marine - Model TM1000 - 1MW Natural Gas/CNG Fuel Power Generator Set
Turbine Marine`s 1MW (TM1000 kW) Generator Set is based on well-known, time-proven technology and components, together with a state-of-the-art operating system, that operates in real time while providing true deterministic control. This system is designed to operate using gaseous fuel or optional liquid fuels, and the unit sub-assemblies are modularized for quick installation and come fully tested.
The 1MW Natural gas unit is comprised of 4 main components:
One of the major components of the system, sometimes referred to as the Prime Mover, is a highly modified Turbine Marine turbine engine (TM1500).
This generator is designed for easy installation, minimum operating vibrations and rapid response to widely varying electrical loads.
A high-speed gearbox was specifically designed and manufactured to a 3.317:1 nominal gear ratio, with 1000 kW production at 5,971 RPM input, 1800 RPM output.
Control System
The electronic engine Control System provides complete turbine and package control including starting, alarming, shutdown, and engine fuel. A large, color touch-screen Operator Interface Terminal provides real-time and historical information to the operator in a convnient, easy to use format.
- Continuous duty (w/cost efficient operation)
- Reduced operation & maintenance requirements
- Fuel flexbility (capable of using alternative fuels by special request)
- Increased electric power generation
- Completely self-contained
- Fully automated control system
- Remote control monitoring (optional)
- Equipment upgrades available
- Fast assembly and delivery
- 12 Month warranty by Turbine Marine, Inc
- Small footprint and weight
- Air cooled
- Time proven reliability – over 40,000,000 hours of operation in Aviation / Industrial
- Continuous power cycle with minimal vibration
- Engine efficiency 25%+ single cycle operation
- Split-shaft design with five stage axial compressor
- Output speed of 6,000 RPM
- Output up to 1,000 kW
