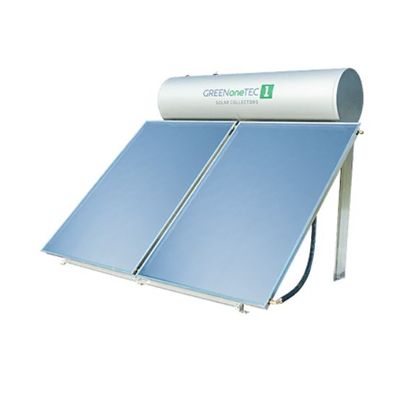

Model Thermosiphon CLASSIC - 2 Circuit System

SHARE
Engineered as a 2 circuit system, the GREENoneTEC Thermosiphon CLASSIC offers a high quality enameled double jacket tank and is available in 3 sizes. Our thermosiphon panel has been opti­mised by incorporating the return pipe inside the panel, reducing installation time and make it optical more appeal­ing. The tank can also be fitted with an optional electric heat rod which ensures that hot water is available when needed.
Most popular related searches
solar water heating
electrical heating
electrical heat
solar water
solar collector
solar engineering
enameled storage tank
solar storage
The high-performance but attractively priced “Slimline” quality collector is the starting point for the thermosiphon system from GREENoneTEC. The connection lines from the solar collector to the storage tank are well protected by being integrated in the collector. Energy losses are therefore eliminated and the full power of the sun is used for the solar water heater. Apart from the quick and easy installation, this clever solution also satisfies demanding aesthetic requirements.

The generated heat can also be stored over a longer period thanks to a special tank insulation. All thermosiphon systems (160, 200, 300 litres) are designed as “high pressure” dual-circuit systems and thereby guarantee maximum solar yields. This makes a substantial contribution towards cutting costs and saves you money according to the maxim: “We don’t get a bill from the sun”.

As a dual-circuit system, the GREENoneTEC thermosiphon system CLASSIC with a double-jacket storage tank (enamelled) is available in three sizes. The storage tank is provided with two exchangeable magnesium anodes for maximum corrosion protection as standard. As an option, the storage tank can also be equipped with a heating rod for rapid water heating.

CLASSIC 160

1 collector
60kg weight of tank
145l capacity
1,5 kW & 3,5 kW / 220V heating rod (optional)
1733mm x 1173mm x 73mm

CLASSIC 200

1 collector
80kg weight of tank
177l capacity
1,5 kW & 3,5 kW / 220V heating rod (optional)
1733mm x 1173mm x 73mm


CLASSIC 300

2 collectors
100kg weight of tank
266l capacity
1,5 kW & 3,5 kW / 220V heating rod (optional)
1733mm x 1173mm x 73mm
