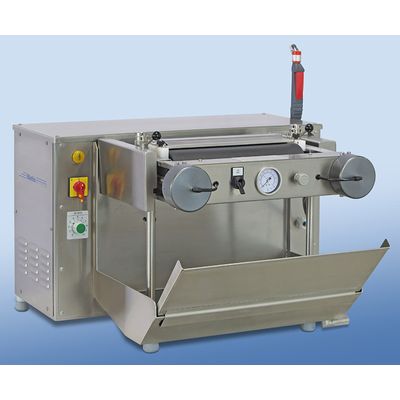

MATHIS AG - 2-Roll Horizontal Padder Type HF
FromWerner Mathis Ag
The 2-Roll Horizontal Padder Type HF by MATHIS AG is designed for precise dyeing and finishing of material samples in the nip. Leveraging pneumatic pressure transmission, this padder ensures uniform and controlled application of dyes and finishes. It is particularly useful in laboratory and small-scale production settings where consistent and repeatable results are critical. This equipment is highly versatile, catering to various sectors including textiles, solar/photovoltaic, and the chemical industry. MATHIS AG's padder technology stands out due to its enhanced pressure control, offering improved accuracy in dyeing processes. This makes it indispensable for applications demanding high reliability and quality, ensuring optimal results across a broad range of materials and treatments.Most popular related searches
 |
Gear wheels for driving of both rollers |
|
Distance adjusting device 0 – 5 mm |
|
Unwinding and upwinding device |
|
Automatic pressure release at roller stop |
|
Special roller materials |
|
Sub-frame undercarriage |
Roller width: 350 mm
Roller diameter: 110 mm
Roller rubber hardness: approx. 70° Shore
Nip: 280 ml max.
Nip immersion distance: 40 mm
Pressure system: pneumatic
Fabric speed: 0.5 – 10 m/min
Dimensions W x D x H: 715 x 720 x 500 mm
Weight: ~150 kg
