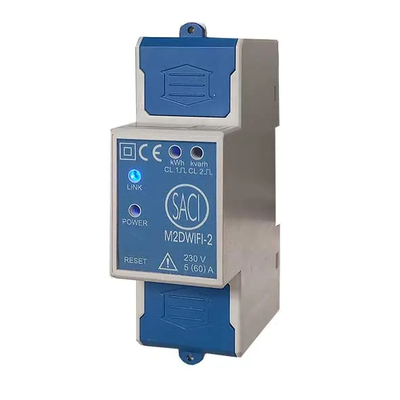

SACI - Model M2DWIFI-2 -2 Single-Phase Energy Meter
The M2DWIFI-2 single-phase meter, with WIFI communication, enables precise and remote energy monitoring. This device allows users to take readings and control energy consumption from anywhere, offering the ability to monitor consumption in real-time. Through the Smartenergy management platform, users can remotely disconnect and reconnect the electrical panel supply. The platform is available in both web version and apps for iOS and Android. Additionally, it provides a comprehensive solution for both residential and commercial applications. Through the Smartenergy management platform, users can not only view consumption data but also control various functions, such as remotely cutting and reconnecting the electrical panel supply. This is particularly useful for businesses or homeowners who want to maintain control even when they’re off-site.
The M2DWIFI-2 is a state-of-the-art single-phase energy meter that provides an effective solution for energy management. This system allows users to remotely control consumption and offers a high degree of flexibility through its energy monitoring software platform.
The device includes a remote disconnection switch, which allows the power supply to be disconnected or reconnected instantly and safely. This feature provides peace of mind for users, as it ensures protection against unauthorized use or potential safety hazards. This is especially beneficial in cases of overloads, electrical faults, or unauthorized connections. Additionally, the meter’s monitoring capabilities allow users to analyze energy consumption in great detail and set custom alerts, enabling more efficient and proactive energy management.
Key Features:
- Electric consumption meter via WIFI: Thanks to WIFI connectivity, the M2DWIFI-2 offers real-time readings.
- Smartenergy platform: A comprehensive monitoring platform available on both web and app, providing full control over energy consumption.
- Remote power supply disconnection: Ability to cut or restore the power supply up to 80 amperes.
- Energy efficiency control: The system allows for setting custom power limits and precisely controlling energy consumption to avoid overloads and improve energy efficiency.
Benefits for energy management:
The M2DWIFI-2 meter offers detailed control over energy consumption, enabling businesses and residential users to improve the energy efficiency of their installations. Through the Smartenergy monitoring platform, it is possible to adjust consumption patterns, set limits, and enhance the overall energy performance of the installation.
Moreover, the remote monitoring capability and power supply control through the energy monitoring software allow for a quick response in the event of failures or overloads, helping to maintain a safer operation of the systems. This is especially relevant for users looking to achieve energy savings and improve the operation of their energy management systems.
If you would like to learn more about how the M2DWIFI-2 can enhance your energy efficiency, don’t hesitate to contact us.
The M2DWIFI-2 is designed to provide a comprehensive solution for energy monitoring and consumption control. Some of its main technical features are:
- Single-phase energy meter with 2 modules.
- Nominal intensity of 5 (60) A, suitable for various types of installations, both residential and businesses looking to improve their energy management.
- Nominal voltage of 165 to 265 V AC, compatible with most electrical installations.
- Self-powered: Does not require an external power source for operation.
- Remote disconnection switch up to 80 A.
- Programmable power limiter: Ideal for efficiently controlling consumption and preventing overloads.
The consumption data provided by the M2DWIFI-2 is accurate and allows for tracking energy performance. With its high precision and detailed reporting capabilities, users can closely monitor their energy use and take action to improve efficiency. Below are the technical specifications of the device:
Voltage input:
- Nominal voltage: 165 – 265 V AC.
- Own consumption: < 10 VA, < 2W. It has low power consumption during operation.
- Frequency: 50 Hz, compatible with most electrical systems.
Current input:
- Intensity IB (IMAX): 5 (60) A.
- Starting current (In): < 0.4% IB.
General Features:
- Accuracy: 1%.
- Impulse constant: 1000 impulses / kWh.
- Operating temperature: – 20 ºC to 70 ºC.
- Average annual humidity: < 95%.
- Communication: WIFI 802.11 b/g/n.
- Standard: IEC 62052-11 .. 53-21 .. 55-41 .. 56-21.
- Modular case: 2 modules (35 mm).
- Enclosure material: PC + ABS.
- Anomaly indicator: Green LED.
- Sealable terminals.
- Screw terminals.
- Phase input terminals: 1 x 15 mm².
- Neutral terminals: 1 x 1.5 mm².
This device complies with quality and safety standards such as:
- EN 62053-21
- EN 62053-22
- DIN 43864
- EN 61010
These standards ensure that the meter operates according to current regulations in energy management systems.
