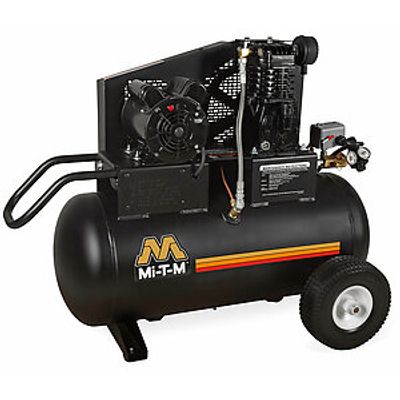

Mi-T-M - Model AM1-PE15-20M -20-Gallon Single Stage Electric Portable Air Compressor
The 20-gallon electric air compressor easily provides the power needed for projects where running multiple air tools is a necessity.
Most popular related searches
Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Motor
Auto start/stop – continuous run optional · Thermal overload motor protection · 8-foot power cord
Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 10-inch flat-free tires
Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 10-inch fly wheel · Industrial-grade pressure switch
- 1 Year Electric Motor
- 2 Year Pump Exchange
- CFM @ PSI: 7.3 @ 90
- Horsepower/Motor; 1.5 HP, 120V, 13.2A
- Plug Type; NEMA 5-15P
Weights & Dimensions
- Net Weight: 196.00 lbs.
- Shipping Weight: 265.00 lbs.
- Length: 40.00 in.
- Width: 24.00 in.
- Height: 32.00 in.
