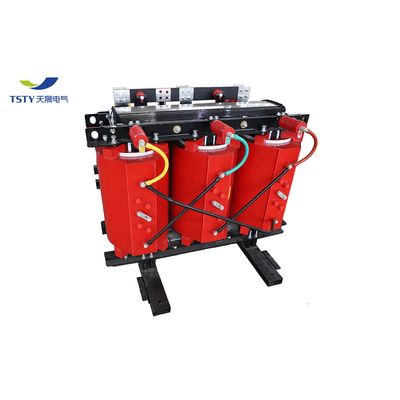

TSTY - Model SCB11, SCB13, SCB14 - 20kV Cast Resin Dry Type Power and Distribution Transformer
The TSTY 20kV Cast Resin Dry Type Transformer is designed for efficient power distribution and is available in models SCB11, SCB13, and SCB14. It operates on a three-phase system with a service voltage range of 6-35kV and a rated capacity spanning 30-4000kVA. These transformers are crafted using high permeable grain-oriented silicon sheets and are encased using imported epoxy resin through vacuum casting. Their design minimizes moisture absorption, enhances mechanical strength, and improves reliability. To ensure safety, the insulating materials are self-extinguishing, capable of preventing fire hazards from short circuits, and do not emit harmful gases when exposed to high temperatures. The SCB series offers reduced maintenance with long-term operational efficiency, low noise, and minimal energy loss, essential for modern power systems.Our SC(B) series epoxy resin cast dry transformer is cast under vacuum with thin insulating bands automatically. The core is made of high permeable grain orientated silicon sheet and cast with imported epoxy resin. Thanks to advanced technology, quality raw materials, scientific management , and perfect inspection means , our products have the following features.
The coil is reinforced with glass fiber and cast under vacuum with filler epoxy resin. It has good mechanical properties, is free of crack and inner bubble and has low local discharge , high reliability, and long service life. The high and low voltage systems are cast under vacuum , thus the coil will not absorb moisture . The clamps of core are subjected to corrosion resistant treatment. The insulating materials in the coil such as glass fiber are self extinguishing and they will not cause fire by the arc resulted from short circuit . The resin will not generate toxic or harmful gas under high temperature.
- Epoxy resin cast dry-type transformers
- Low temperature rise long-term full load operation
- High quality widnings and core
- Less maintenance work
- Small volume and low noise low loss
- Durable and long service life
- Custom-made & OEM available
