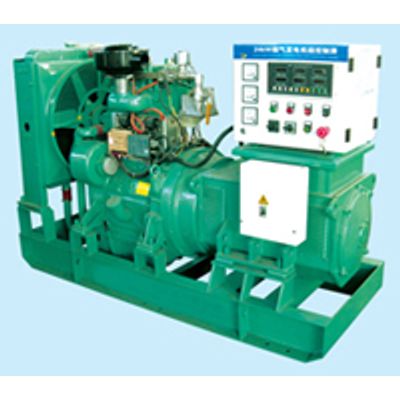

HehaiModel 20GFT60 -20kw Gas Generator

SHARE

The insulation between the phases and earth is not less than 2 MΩ. The generator set comes with copper grounding bolts and obvious ground label.  The Biogas generator set could start smoothly with temperature not less than 5? and no preheating of oil and coolant. The no-load voltage regulation is from 95% to 105% of the rated voltage. Net Weight of Biogas generator set:About 1000kg. Dimension of Biogas generator set: 2100mm×760mm×1350mm.

Most popular related searches
  • ontinuous Power(@25?): 20kW/25KVA
  • Standby Power23kW/29KVA
  • Biogas engine model: 2135T (Hehai Power patent)
  • Alternator model: SB-4W-20-6P
  • Rated Current: 40A
  • Rated Voltage   460V/230v
  • Factor: 0.8(Lag)
  • Frequency: 60Hz
  • Rated RPM     1200r.p.m
  • Phases: 3 phase 4 wires
  • Steady Voltage regulation: ±2.8%
  • Voltage settling time: 1.5s
  • Instant Voltage Regulation: +20%,-15%
  • Frequency regulation:  0~8% available
  • RPM regulation: =0.9%
  • Frequency recovery time: =4s
  • Voltage regulation   =±0.8%
  • Start mode: DC24V
  • Battery charging mode: Biogas engine with alternator
  • Overload capacity:  110% continuous power load available for 1 hour per 12 hours running?
