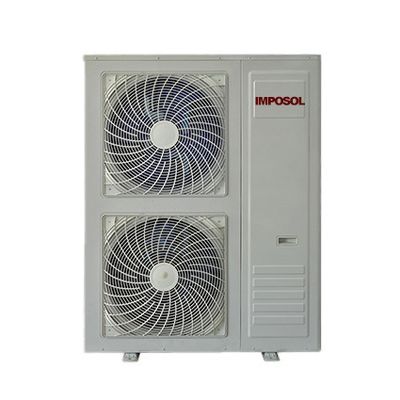

Imposol - Model WHP-060HC - 20KW Inverter& EVI Air Source ( Ultra-Low Ambient Temp.) Heat Pump
Performance Condition - A : Ambient temp. (DB/WB): 7°C/6°C, Water temp. (In/Out): 40°C/ 45°C; Performance Condition - B : Ambient temp. (DB/WB): -12°C/-14°C, Water temp. (Out): 41°C; Performance Condition - C: Ambient temp. (DB/WB): 35°C/24°C, Water temp. (In/Out): 12°C/7°C.
Model: WHP-060HC - 20KW
Power Supply - Refrigerant: 380-415V/3PH/ 50Hz - R410A
Heating Capacity ( KW ) - A: 20
Rated Input Power ( KW ) - A: 5.5
COP ( W/W ) - A: 3.64
Heating Capacity ( KW ) - B: 15
Rated Input Power ( KW ) - B: 5.76
COP ( W/W ) - B: 2.60
Cooling Capacity ( KW ) - C: 18
Rated Input Power ( KW ) - C: 6.1
EER ( W/W ) - C: 2.95
Max. Input Power ( KW ): 8.0
Max. Input Current ( A ): 12.0
Compressor : Mitsubishi EVI Technology Twin Rotary
Fan: DC inverter brushless fans
Fan Quantity ( Pcs ): 2
Fan Airflow ( m3/h ): 7000
Fan Rated Power ( W ): 200
Heat exchanger: High efficiency plate type heat exchanger
WaterSide Pressure Drop ( Kpa ): 55
Inlet/Outlet Pipe Size ( mm ): DN25
Min. Water Flow ( m3/H ): >3.1
Noise ( dB(A) ): ≤61
Heating Water Temp. ?: 20 ~ 60?
Cooling Water Temp. ?: 5 ~ 20 ?
Operating Ambient Temp. ?: -35°C~45?
Unit Dimension ( mm ): 1100*400*1410
Weight ( KG ): 130/138
