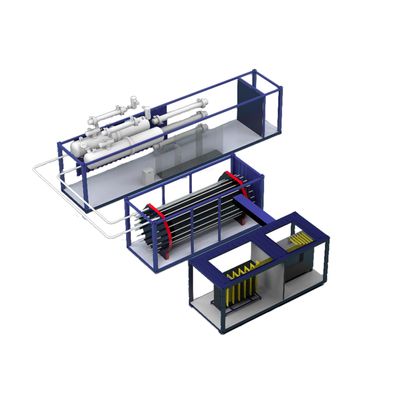

VERDE - 20MW Hydrogen Containerized Electrolyzer
VERDE HYDROGEN patented alkaline type hydrogen production electrolyzers commission for the green hydrogen market. Large single-stack design (from 1kW, up to 5MW) can be standardized as more than 15 models from as small as 1Nm3/h to 4000Nm3/h or higher. Systems can be customized and capacity designed to the project requirements. Combined with containerized and compact design, that can be installed outdoors in any ambient temperature. VERDE HYDROGEN Electrolyzer Systems comply with international standards: ISO22734, ASME VIII Div I, NFPA 2, IEC and etc.
H2 Production: 4000 Nm3/h, 8544 kg/day
O2 Production: 2000 Nm3/h
Purity: > 99.9995%
Dew Point: Up to -70?
Pressure: 1.6MPa, 230psi
Electricity: Medium Voltage, Low Voltage
DI Water Consumption: 4000 L/h
Footprint: 40` container ×10, 20` container ×2
