Daelim - 220kv Power Transformer

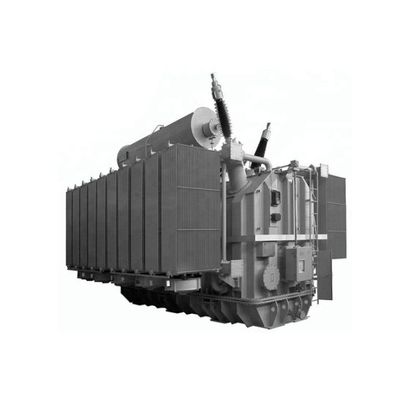

Daelim 220 kV/230 kV transformer, use Japanese Toshiba analysis software and our company`s special calculation and validation procedures for the transformer core, winding, implement body, lead, fuel tanks, etc. Parts of the optimal design and carrying on the Omni-directional validation, ensure product performance. Superior process equipment, elaborate material selection, and efficient manufacturing make the transformer have small volume, lightweight, low loss, low partial discharge, low noise characteristics. The product quality is superior, energy conservation and environmental protection, easy installation and maintenance, reliable operation, and effectively reduced product running costs.

Daelim offers transformer solutions such as high efficiency, environmentally friendly, maximum short-circuit strength, overload capability, high-temperature operation, reliable start-up after a power outage, and low maintenance costs solutions, applied in renewable projects, urban substations, utilities, industrial applications, etc.

• Prompt preparation of bids
• Optimized, consistent end-to-end project management
• Noticeably shorter production and delivery times
• Very high delivery reliability
• Fast, standardized documentation
• Just-in-time delivery

Core Assembly

The iron core of the 220kV/230kV power transformer is made of cold rolled, granular-oriented, low-loss, and high magnetic conductive silicon steel sheet, which is of multi-step completely tilted structure to reduce the loss and noise.

Iron core with fixed clamps optimizes the design so as to ensure mechanical strength and reduce leakage losses.

The adoption of PET banding structure ensures the damp force of the core column and lowers the noise.

Coil Winding

Daelim 220kV and 230kV transformer HV winding adopt entanglement or inner screened continuous type with phase insulation structure to ensure insulating strength.

MV/LV windings adopt high strength or adhibit-transposition conductors and forced cooling to reduce the temperature rise and enhance the capability of short circuit withstand.

Interleaved, shielded disc, helical, disc, or layer construction (depending on voltage and impulse rating)

Active- parts Assembly

Cold pressing ensures the cleanness of the body`s active parts and the reliability of leads.

Daelim 220kV and 230kV transformer uses the entire assembly and insulation material to reduce the assembly time and effectively ensure the size and shape of the insulating structure.

HV lead adopts specially molded insulation parts for protection which effectively guarantees its insulating strength and reduces partial discharge.
