TopperModel EVCC-ACEVC -22kW EV Charging Statio

SHARE

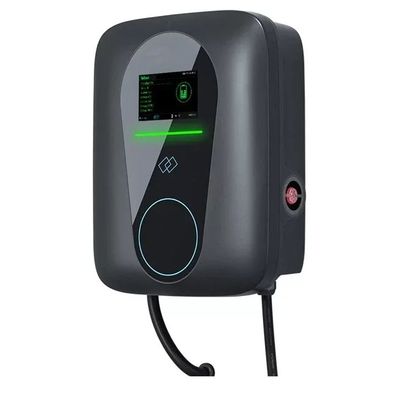

This versatile charging station is equipped with a Type 2 socket and supports 3-phase power with a 32A current, ensuring efficient and rapid charging for electric vehicles. It is compatible with the OCPP 1.6 protocol, enabling seamless integration with various charging networks. Designed for flexibility, the station can be wall-mounted or installed on a floor stand to suit different environments. With an IP65 protection rating, it is built to withstand harsh weather conditions, making it ideal for both indoor and outdoor use. This 22kW charging station delivers reliability and performance for all your EV charging needs.

Most popular related searches
  • Voltage: 230V AC±10%
  • Output Current: 32A
  • Frequency: 50/60Hz
  • Output Power: 7kW
  • Residual Current Protection: TYPE B(AC 30mA+DC 6mA)
  • Display: 5 Inch LCD Touch Screen
  • RFID Function: 5pcs cards
  • Charging Outlet: One charging socket (Type 2)/4.5M charging cable
  • Power Incoming Line: 0.5M
  • Front Pane: PC
  • Installation Method: Wall-mounted/Floor Stand
  • Network Gateway: Ethernet/4G/Wifi
  • Communication Protocol: OCPP1.6(J-SON)
  • Protection Level: IP65
  • Working Altitude: ≤2000M
  • Working Temperature: -30°C - +50°C
  • Atmospheric Pressure: 80kPa-101kPa
  • Product Size: 398*324*120mm
  • Product Weight: 10KG
  • Dynamic Load Balancing: RS485 meter or local junction box(optinal)
  • Safety Standard:
  • EN IEC61851-1:2019; IEC61851-1:2017; EN IEC61851-21-2:2021;
  • EN IEC61000-6-1:2019; EN IEC61000-6-2:2019; EN IEC61000-6-3:2021;
  • ETSI EN 300 330 V2.1.1:2017; ETSI EN301 489-1 V2.2.3-2019;
  • ETSI EN301 489-3 V21.1:2019; ETSI EN301 489-17 V3.2.4:2020;
  • EN IEC62311-2020;
