Zhejiang Yongtailong Electronic Co.,LTD

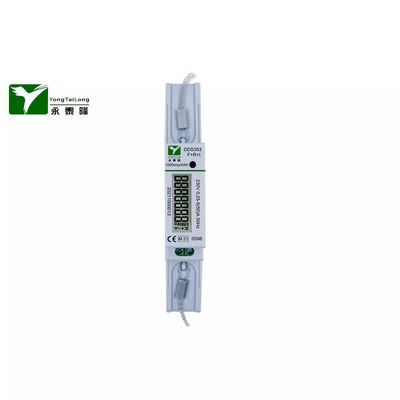

YTL - Model DDS353F+R+I -230V DIN rail Singlephase 1 Wire OEM Electric Meter Multi-tariffs
The DDS353 Series Digital Power Meter works directly connected to a maximum load 50A AC circuit This meter has been MID B&D Certified by SGS UK, proving both it’s accuracy and quality. This certification allows this model to be used for any sub-billing applications.Most popular related searches
multifunctional energy meter
electricity meter
energy meters
energy meter
energy metering
power meter
single-phase energy meter
Standard: EN50470-1/3
Rated Voltage: 230V
Rated Current: 0,25-5(30)A,0,25-5(32)A,0,25-5(40)A,0,25-5(45)A,0,25-5(50)AImpulse Constant: 1000 imp/kWh
Frequency: 50Hz/60Hz
Accuracy Class: B
LCD Display: LCD 5+2 = 99999.99kWh
Working Temperature: -25～55℃
Storage Temperature: -30~70℃
Power Consumption: <10VA <1W
Average Humidity: ≤75% (Non Condensing)
Maximum Humidity: ≤95%
Start Current: 0.004Ib
LED flash: Impulse indication, pulse width = 80 msSoftware Version/CRC V101 /CB15
