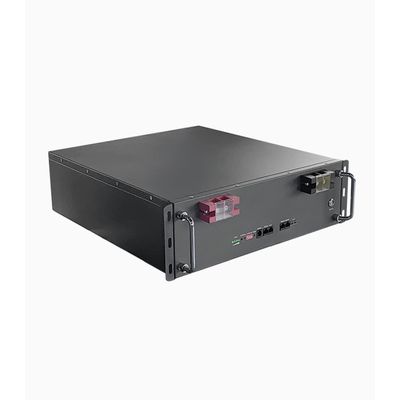

Egbatt - Model Lifepo4 - EG 24200 -24v 200AhDeep Cycle Lithium Iron Battery
The EG batt 24V 200Ah LiFePO4 Deep Cycle Lithium Iron LifePower4 Battery is a reliable and durable power source that is perfect for use in a variety of applications, including RVs, boats, off-grid solar systems, and more.
Featuring advanced lithium iron phosphate technology, this battery delivers safe and reliable performance with a longer lifespan than traditional lead-acid batteries. The deep cycle design allows for continuous power supply without damaging the battery, and the 24V 200Ah capacity ensures long-lasting power output.
Designed for easy installation and maintenance, this battery is equipped with built-in battery management systems for optimal performance and safety. It is also lightweight and compact, making it easy to transport and store.
- Built in LiFePo4 prismatic cells
- Robust Energy storage BMS
- Optional Bluetooth or Screen
- Server rack design
- Model: EG 24200
- Nominal Voltage: 25.6V
- Nominal Capacity: 200Ah
- Battery Cell Type: Prismatic 200Ah
- Configuration: 8S2P
- Max. Continuous Charge Current: 100A
- Max. Continuous Discharge Current: 100A
- DC Resistance: ≤10mΩ
- Full Charge Voltage: 29.2V
- Discharge Cut-off Voltage: 20V
- Operating Temperature Range: Charge: 0~55? Discharge: -20~60?
- Dimension: 500*480*1450mm
- Weight: 45kg
- Terminal Type: Screw terminal
- Cover Sealing Type: Screw/gel sealing optional
- IP Class: IP65
- Cycle Life: 2000times @100%DOD, 25? 1C/1C
- 3000times @80%DOD, 25? 1C/1C
- 5000times @50%DOD, 25? 1C/1C
- LCD Screen Display: Optional (Show voltage, Power)
- Bluetooth: Optional (Bluetooth with mobile App )
- Series and Parallels Function: Available to make in parallel for 400Ah. 600Ah. 800Ah. 1000Ah and More
- Larger Capacity and Higher Power: With a maximum energy output of 5.12kWh and 5.12kW power, the EG lifepo4 24V 200Ah LiFePO4 battery offers a longer battery runtime and higher power capacity, making it an excellent energy source for your needs.
- Grade A Cells: The Ampere Time LiFePO4 battery comes with grade A cells that offer 8000+ deep cycles, with a 5-year lifetime, eight times more than traditional lead-acid batteries.
- 100% Protection: The battery features a built-in 200A Battery Management System (BMS) that ensures 100% protection from overcharging, over-discharging, short circuit, and high temperatures, making it eco-friendly and non-toxic.
- Fast Charging: The battery can be fully charged within 5 hours using a dedicated 24V (29.2V) 20A LiFePO4 charger, while it can be charged using a solar panel with more than 1800W within a day.
- Max Energy Expansion: The EG lifepo4 LiFePO4 battery supports parallel connection, allowing for a maximum energy expansion of 40.96kWh (40.96kW), making it perfect for use in solar-powered homes, backup power, off-grid living, RVs, security, or surveillance systems.
- Weight: 45 kg
- Dimensions: 500 × 450 × 165 cm
- Brand: CATL
