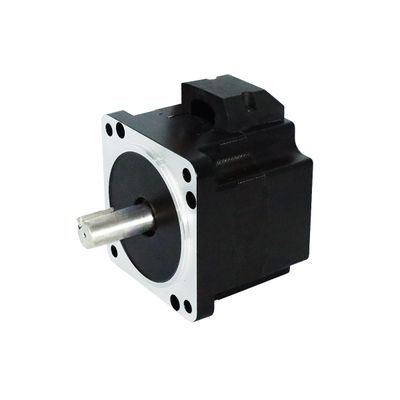

Brushless - Model BLDC-24V-200W -24V 200W Brushless DC Motor

High torque 200W 3000 rpm brushless DC motor with 24V rated voltage, IP54 protection grade, max. torque can up to 1.91 Nm. High speed BLDC motor is widely used in new energy electric cars, renewable energy systems, and compact occasions.

Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.

• Stable Speed Control: 24V brushless motor continues to set speed and a feedback signal is compared from the speed of the motor to adjust the voltage applied to the motor; therefore, even if the load change, still can set the speed from slow instantaneous adjustment to, and in order to stabilize the running speed.
• Thin, High Power: 3 phase DC motor adopts a permanent magnet brushless motor rotor, thus realizing the thin and high power.
• Wide Speed Control Range: The speed control range of 200W brushless motor than speed AC motor and inverter wider, because unlike the speed AC motor that at low speed have restrictions on the use of torque, so there is no brush motor is suitable for from low speed to high speed, all require the use of a certain torque.
• Contribute To Energy Saving: The rotor of the brushless motor is used for the permanent magnet, which can reduce the two-loss of the rotor, so the power consumption is reduced by more than 20% compared with the three-phase induction motor with variable frequency control, which is helpful for the energy saving of the device.
• Equipped With Protection Function: The high-speed BLDC motor helps to protect the safety of the equipment system.

• Instantaneous maximum torque line
  The maximum torque momentarily impacts the load when the motor is started.
  Beyond this torque, the over-current protection of the driver will cause the motor to stop.
• Short-time operation area
  The motor can run for a short time within this torque range at different speeds.
  If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
• Rated operating torque line
  The rated torque of the motor runs at different speeds, and the motor can run for a long time at this torque.
• Continuous operating area
  When the motor rotates at different speeds, it runs continuously in this corresponding zone.

High-torque brushless DC motors are widely used in our lives, such as electric bicycles, inverter air conditioners, washing machines, drones, automobiles, CNC machine tools, polishing and grinding equipment, packaging machinery, tools, turnstiles, industrial control, medical machinery, automation to, AGV trolley, aerospace and intelligent storage equipment, etc.
