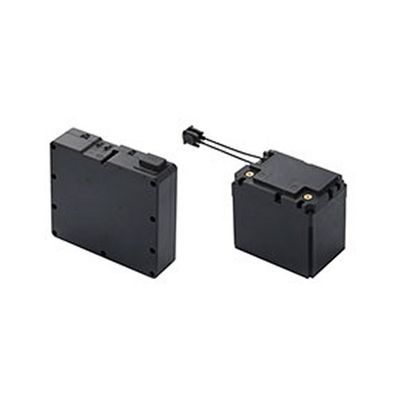

Murata FORTELION - 24V Battery Module

Murata FORTELION - 24V Battery Module

FromMurata Manufacturing Co., Ltd.

SHARE

Murata`s FORTELION 24V Battery Module is built with olivine-type lithium ion iron phosphate secondary batteries (FORTELION), which are known for their longevity, safety, and fast-charging capability. Murata`s FORTELION 24V Battery Module is capable of monitoring each Battery Module`s Voltage, Current, Temperature & Capacity Value through CAN communication. It is possible to customize voltage and capacity in order to meet the requirements of wide range of applications including Robot, AGV, E-Cart, Forklift, etc.

Most popular related searches

lithium iron phosphate

lithium ion secondary battery

lithium-iron phosphate battery

lithium battery

lithium ion battery

battery monitor

battery monitoring

Model Name : LIPY032WWPCSY6(Battery Module), LIA1020WWPACSY6(BMU)
System configuration : Battery Module+BMU
Nominal Voltage / Capacity
(per module) : 25.6V / 24Ah / 614Wh
Max Discharge Current : 50A / 40A / 30A
(5sec / 25sec / cont.)
Max Charge Current : 24A (1C)
Module Max Configuration : 2s10p
Battery Communication I/F : CAN Bus
(Murata original format)
Dust and Water proof : Not supported
Safety regulation : IEC62133
CE (EMC, RoHS)
Dimension (module) : 259(L) x 71(W) x 245(H) (mm)
Weight (module) : 7.3kg (Module)

Model Name : LIPY041WWPCSY6
System configuration : All-in-one(BMU function is included)
Nominal Voltage / Capacity
(one module) 25.6V / 21Ah / 537Wh
Max Discharge Current : 100A / 80A / 60A (5sec / 25sec / cont.)
Max Charge Current : 42A (2C)
Module Max Configuration : 2s10p
Battery Communication I/F : CAN Bus, U-art (Murata original format)
Dust and Water proof : IP54 rating
Safety regulation : IEC/UL62133, IEC62619 UL2271 (Light EV battery) CE (EMC, RoHS)
Dimension : 195(L) x 132(W) x 180(H) (mm)
Weight : 6.5kg
