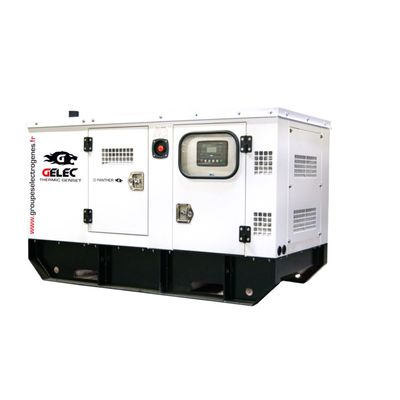

Gelec - Model PANTHER-25YD -25 KVA Diesel Generator
PRP: Prime Rated Power: 23 kVA / 18 kW. ESP: Emergency Standby Power: 25 kVA / 20 kW. Voltage: 230-400V. Power factor: 0.8 (cosΦ). Rotation speed: 1500 rpm. Number of phases: 1 or 3. Frequency: 50 Hz. Fuel tank autonomy at 75%: 15 hours.
- ESP Power 25 kVA
- PRP Power 23 kVA
- Rotation speed 1500 rpm
- Fuel tank capacity 80 Liters
- Number of cylinders 4
- Autostart integrated
- Available in Single phase & Three phase 56/32A
Alternator Specifications :
Excitation system : Self Excited
AVR : Stamford
Voltage regulation type : electronic
Engine specifications :
Number of cylinders : 4
Governor type : mechanical
Specifications : 4-cycle engine, direct fuel injection , liquid-based cooling
Displacement : 2,5 L
Maximum standby power at rated rotation 1500tr/min : 24 kW
Maximum standby power at rated rotation 1500tr/min : 32,7 Cv
Compression ratio : 18:01
Engine starting type : electrical 12V
Air inlet system : atmospheric
Fitted with an electronic controller and automatic transfer switch, this 24 kVA genset can power construction sites, events, a wide variety of site tools and even farms.
OPTIONS:
For enhanced mobility it can be mounted on a trailer.
The B100 enables the genset to operate using recycled oil instead of diesel.
This genset is equiped with four poles thermal magnetic circuit breaker with ajustable differential switches, with a DEEPSEA control panel and with an integrated automatic transfer switch system.
