Daelim - Model ZGSL-H-2500/13.2-0.6 -2500 kVA Pad Mounted Transformer
Daelim pad-mounted transformer has many use cases in the North American market. Built to IEEE/ANSI, CSA, NEMA, IEC, and other standards, and has UL listing.Contact Daelim to check pad mounted transformer stock availability.

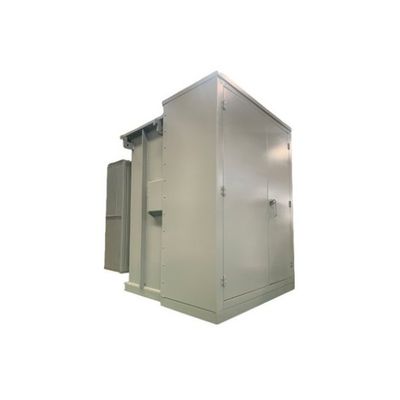

The ZGSL-H-2500/13.2-0.6 is a 2500 kVA three-phase pad-mounted transformer with UL listing. This transformer was meticulously designed and manufactured by DB Transformer for a customer in the United States who purchased four units in a single transaction. The 2500 kVA pad-mounted transformer adheres to the IEEE C57.12.34 standard and is compliant with DOE regulations. It is constructed with aluminum conductors and is configured as a loop-feed type transformer for dead-front systems. The cooling method employed is KNAN.
The ZGSL-H-2500/13.2-0.6 transformer boasts a power rating of 2500 kVA (2.5 MVA). The 2500 kVA transformer has a primary voltage rating of 13.2/7.62 kV with a Wye connection, high voltage H0 grounding, and a secondary voltage of 600Y/347V Wye with low voltage H0 grounding.
The ZGSL-H-2500/13.2-0.6 2500 kVA transformer is versatile, and suitable for both indoor and outdoor installation. These transformers are equipped with degradable vegetable oil insulating fluid and maintain a 65°C temperature rise. They come with 3 ELSP fuses and 3 bay-o-net fuses for protection, along with 3 high-voltage bushings, 3 elbow arresters(HV), and four low-voltage bushings, each with 6 holes. The low-voltage terminal installation position is reinforced with a Padmount plate. Additionally, the 2500 kVA transformer features a four-position load-break switch and a five-position tap changer on the high-voltage side.
The ZGS-Z-2500(3050)/44/0.6 is a specialized 2500 kVA live-front pad-mounted transformer designed to meet the unique requirements of Canadian customers by DB Transformer. This three-phase pad-mounted transformer is compliant with CSA C227.4 and CAN/CSA 802.1 standards. It features a high voltage of 44 kV in Delta configuration and a low voltage of 600GrdY/347V.
The transformer is equipped with degradable RAPO oil as its insulating fluid and is designed for a temperature rise of either 55°C or 75°C. Its kVA rating is 2500 kVA (2.5 MVA) at a 55°C temperature rise and 3050 kVA at a 75°C temperature rise.
What sets this 2500 kVA transformer apart is that its low voltage is designed to exit from the side. Furthermore, the gauges, tap changer, nameplate, pressure relief valve, and upper fill valve are all positioned on the exterior of the front cabin. These gauges are equipped with contacts and are connected within a NEMA 4 outdoor control box. A vacuum pressure gauge is located on the top of the front cabin. The high-voltage bushing is a porcelain integrated bushing with four holes, and the HV side is equipped with three lightning arresters, each of which provides an insulation cap to protect MV cables. Additionally, anti-condensation heaters are installed in the high-voltage front cabin for optimal performance.
