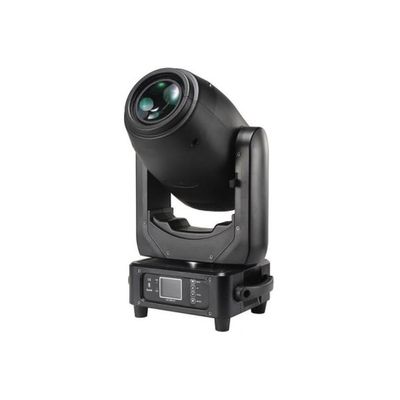

RainStar - Model LCA049-250W BSW - 250W 3 IN 1 LED Moving Head Light

The appearance design is exquisite, using a single 250W white LED light source, white light color temperature 7000K, 7°~35° linear zoom and high-efficiency output three-in-one LED moving head light, long service life. The colors are colorful and the transition is soft, a fixed picture disc and a bidirectional rotating pluggable gobo disc, which is convenient for customers to change the pattern. It has a built-in bidirectional rotating adjustable speed 3 prism and adjustable atomization effect. 16bit dimming technology, smooth, stable and precise mechanical movement, in addition to DMX control, there is also a powerful RDM control.

• Optics
• . LED type: 1x250W white light LED
• ? The illuminance at 5 meters can reach 25,000Lux@7°
• ? Beam angle: 7-35° zoom
• ? Lens diameter: 90mm
• ?Life span: 50000H, low power consumption, energy saving and environmental protection
• Scanning
• Pan/Tilt operation:
• 16bit fine-tuning
• Smooth and precise positioning
• Pan: 540°, Tilt 270°
• Adjustable Pan and Tilt speed
• The scanning position can be memorized, and it will be automatically reset when there is no expected operation.
• Pan and Tilt error correction function
• Colour
• One color plate, 8 fixed color plates + white light, half-color effect, color plates can be positioned arbitrarily, with rainbow effect of bidirectional rotation
• Gobo
• A fixed gobo  plate: 11 pattern pieces + white circle, with pattern jitter function
• A rotating gobo plate: 7 pluggable gobos + white light, with pattern jitter and pattern arbitrary positioning function
• Specification
• 2 DMX channel modes: 16CH/20CH international standard DMX512 channels
• 2 control modes: DMX512, master-slave
• Prism disk: bidirectional rotating 3 prism
• Focusing: electronic focusing, ultra-smooth adjustment
• Dimming: 0-100% 16bit dimming
• Frost: 0-100% linear frost
• Zoom: 7-35° linear zoom
• Strobe effect:0-20HZ strobe?Puls strobe?Ramp up strobe?Ramp down strobe?Random strobe? Strobe Break Effekt, 5s…..1s?Strobe0-20Hz?
• Display
• 2.4 inch TFT color display
• The display board can be reversed 180°, suitable for installation in impassable locations
• Software
• Software update :Update via DMX link
• Display the lamp usage time, which is convenient for customers to understand the lamp usage in time
• LED refresh rate: 25Khz
• 4 dimming curves: linear, square, inverse square, S curve
• Other functions
• Settings and addressing: RDM
• Fan cooling (the fan changes its speed with temperature changes)
• LED temperature detection system to protect the life of the lamp beads
• Power/signal link
• Power connection: PowerCON power cord input and output
• DMX card dragon seat: 3 Pin&5 Pin card dragon seat input and output
• Power supply

• AC100-240V 50/60HZ
• Power: 300W
• ?  Protection level
• Shell material: ABS plastic fireproof material
• Waterproof rating: IP20
• ?  Working environment
• Indoor working temperature: -20°C~+40°C
• ?  Size and weight
• Packing size: 385x275x680mm
• Net weight: 13KG
• Gross weight: 14.5KG
• Certificate : . CE,ROHS
