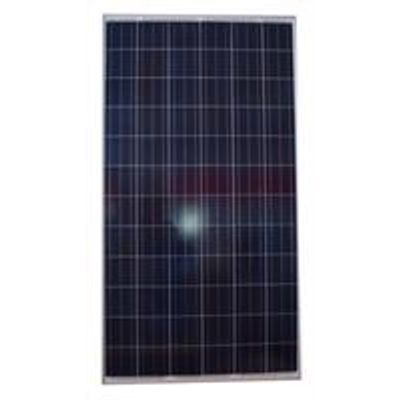

Beeland - Model BL-SP250 -250W 36V Polycrystalline Solar Panel
Solar Cell: High efficiency crystalline solar cell.Even if under the weak light, the solar module can produce maximum power output.
Most popular related searches
polycrystalline solar panel
solar panel
polycrystalline solar
junction box
polycrystalline solar cell
bypass diode
solar cell
solar module
solar module production
electric power
- Tempered glass: Anti-reflecting coating and high transmission rate glass increase the power output and mechanical strength of solar module.
- EVA and TPT: Using high quality EVA and TPT to prevent destroying and water.
- AI frame: Without screw, corner connection. 6 holes on the frame can be installed easily.
- Junction box: Multi function junction box with water proof and bypass diode, which protects the module from burning caused by hot-spot effect because of shading
- High reliability with guaranteed ±3% power output tolerance,ensuring return on investment
- Withstands high wind-pressure and snow load (passed IEC 5400Pa mechanical loading test), and extreme temperature variations. Resisting moisture and etching effectively, not effect by geology.
- Rigorous quality control meeting the highest international standards ISO 9001:2000 (Quality Management System) and ISO 14001:2004 (Environmental Management System) certi ed factories manufacturing world class products.
- 5-year product quality guarantee and 25-year power output transferable guarantee. Long lifetime: ≥25 years; Less power decrease.
- Electrical Data
- Maximum Power(W) 250W
- Optimum Power Voltage(Vmp) 36.80V
- Optimum Operating Current(Imp) 6.79A
- pen Circuit Voltage(Voc) 44.07V
- Short Circuit Current(Isc) 7.45A
- Cell Efficiency (%) 17.50%
- Module Efficiency (%) 15.20%
- Tolerance Wattage(%) 0~+3%
- NOCT 47°C +/-2°C
- Components & Mechanical Data
- Solar Cell 156*130 Poly
- Number of Cell(pcs) 6*12
- Size of Module(mm) 1650*992*40
- Front Glass Thikness(mm) 3.2
- Surface Maximum Load Capacity 2400-5400Pa
- Allowable Hail Load 23m/s ,7.53g
- Weight Per Piece(KG) 17
- Junction Box Type Pass the TUV Certificate
- Bypass Diode Rating(A) 12
- Cable & Connector Type Pass the TUV Certificate
- Frame(Material Corners,etc.) 40#
- Backing (Brand Type) TPT
- Temperature Range -40°C to +85°C
- FF (%) 70-76%
- Standard Test Conditions AM1.5 1000W/㎡ 25 +/-2°C
