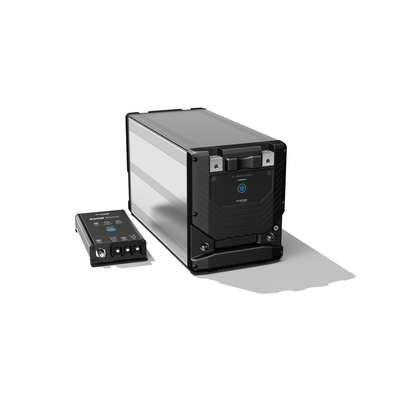

Clayton - Model CPG4 -280Ah - 12V Extension Battery

The included DC-DC converter is able to transfer 600W to the LPS per hour.

• Capacity extension to the LPS
• Including 600W DC-DC Converter
• Double the transfer power to 1200W using 2x Converters
• Safe battery technology – LiFePO4
• Integrated Battery Management System (BMS)
• Ready for parallel connection with the LPS
• Integrated power switch
• Designed for heavy duty environments and requirements

•  Battery type: LiFePO4?
• Capacity: 280 Ah (3584 Wh)?
• Effective capacity: 235 Ah (3008 Wh)?
• Continuous discharge current: 200 A?
• Continuous charging current: 140 A?
• Cycles: 6000 @ (25 0C, 80% DOD)
• Nominal battery voltage: 12.8 VDC?
• Charging voltage: 14.4 VDC?
• Discharge voltage: 10.8 VDC
• Connection terminals: M8 screw?
• Weight: 28 kg?
• Dimensions in mm (HxWxL): 234.4 x 197 x 438.3
