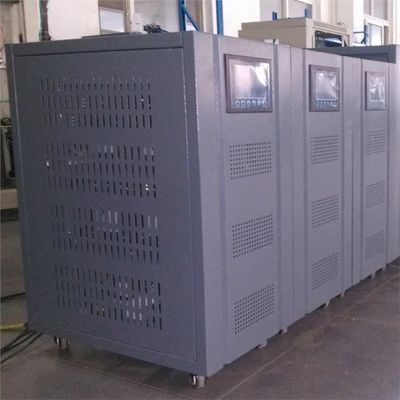

Lingfran - Model ZBW-50KVA -3-phase 50kva Solid Circuit Voltage Regulator
All mains powered equipment requires a supply which is maintained within certain limits. Too low and the equipment will malfunction, too high and the equipment could be serious damaged. In many developed and developing economies, power demand is outstripping supply, giving rise to large voltage swings, surges and brownouts in the supply. Whatever your national or international power supply requirements, voltage stabilisers can ensure your equipment receives the power it needs to operate efficiently and without interruption. Biggest hindrances for electronically operated devices are voltage fluctuation due to sag, spike, noise & transient. It causes loss of data, machine damage & poor productivity. Lingfran 3-phase 50kva solid circuit voltage regulator offers constant voltage to the electronic operated machines using SCR technology.
Rated Power: 50KVA
Input Voltage Range: Three Phase: 380VAC±20%
Output Voltage: Three Phase: 380VAC
Output Voltage Setpoint: 1% to 5% Adjustable
Output Voltage Accuracy: ±2%
Phase Number: Three Phase
Voltage Regulation Mode: Three Phase Independent Regulation
Frequency: 50Hz±5% or 60Hz±5%
Display Type: LCD Screen
Displayed Information: Voltage, Current, Operation Mode, Regulation Mode, Failure Indication
Communication Ports: RS232 and RS485
Winding Conductor Material: Aluminum or 100% Copper
Insulation Class: F or H
By-pass System: Automatic By-pass and Internal Manual By-pass
Response Time: ≤10ms
Efficiency: ≥98%
Load Power Factor: Unaffected
Overload Capacity: 500%, 1 Second
Duty Cycle: 100% Continuous
Admitted Load Variation: From 0 to 100%
Admitted Load Imbalance: Up to 100% (applicable only for three phase model)
Ambient Temperature: -10 °C to +45 °C
Altitude: ≤1000m
Relative Humidity: ≤95% (non-condensing)
Insulation Resistance: ≥10MΩ
Withstand Voltage: 2500V, 1 Minute, No Flashover and Damage
Harmonic Distortion: Nil
Waveform: Pure Sine Wave
Acoustic Noise: ≤45dB
Protection: Input Circuit Breaker, Fuses, Soft Start, Overload, Over Voltage, Under Voltage, Short Circuit, etc
Cooling Method: Natural Ventilation (AN)
Protection Degree: Indoor IP20 (NEMA 1)
Standards: In Accordance with IEC and EN
Options:
Output Circuit Breaker
Surge Arrester
EMI/RFI Filter
Manual Maintenance By-pass
Temperature Meter
Schneider, ABB or Siemens Brand Components and Parts
