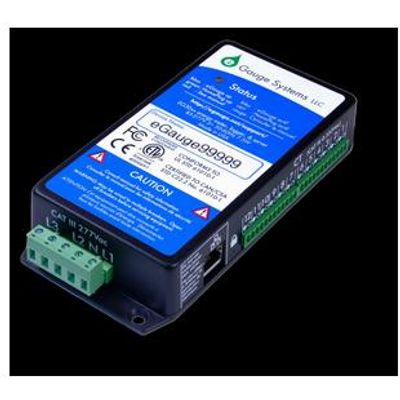

Simple - Model eGauge EG3000 - 3-Phase Web-Based Electric Energy Meter
eGauge is a flexible, secure, web-based electric energy and power meter that can measure up to 12 circuits on up to 3-phases (120V−480V, 50−60Hz). Includes e-gauge device, two 100 A current transformers for the main power supply and two 20 A current transformers for PV generation with the option to purchase up to 8 additional 20 A current transformers.
Most popular related searches
energy meters
energy meter
energy metering
current transformer
renewable energy production
electric power
electrical power
electricity meter
energy monitor
power meter
KEY FEATURES AND BENEFITS
- Measures electric power on up to 12 circuits:
- Building demand/consumption
- Renewable energy production
- Sub-metering and individual circuits
- Built-in web server
- 16 recorded register values expandable to 128 registers
- Multi layered password protection and information hiding
- Fully web-configurable
- CSV export & data API
- URI data push available/open API
- Built-in solid-state memory and data logger:
- 1 second granularity for 10 minutes (volatile)
- 1 minute granularity for current year
- 15 minute granularity for 29 years
- Internet-enabled or stand-alone operation
- Remote device support:
- Team multiple eGauge units
- Weather station & inverter readout via RS485
- Free lifetime firmware upgrades
- No service contracts
- No maintenance
- Windows, Mac, Linux, & smart-phone compatible
- For residential, commercial, municipal, and industrial use
- BACnet compatible
- Made in USA – ARRA “Buy American” compliant
- Custom software development/skinning & OEM services
- See real time devices at www.egauge.net/devices/
NEW FEATURES
- Built-in Ethernet port (not for use inside dist. panel)
- New Homeplug AV communication protocol:
- Increased communication distance
- 200 Mb/s
- Security button:
- Hard reset
- Automatic HomePlug pairing
- Lower power consumption (eGauge and Homeplug)
- DC current sensors
- SMS/Email alerts:
- Device status notifications
- User defined formulas
- FFT analysis
- Logging capability of non-power values:
- THD, VAr, deg
- eGuard Manager updates:
- Installation location mapping
