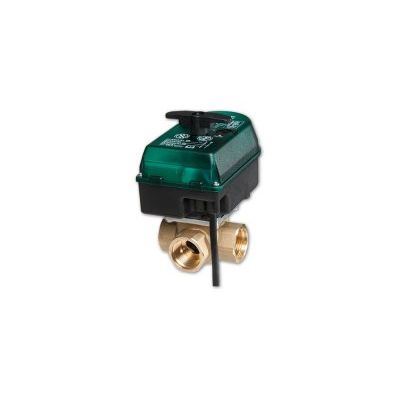

RESOL - Model VA32 - 3-port Motor-driven Valve

Compact size, modern design, insulated actuator housing. Simple manual operation for commissioning or emergency operation. Electrical universal connection by integrated relay. The control is effected by an on-off contact. The limit switch signal output can be used for control purposes (max. 1 A). Position of the ball valve is visible with the indicator flag (white). The actuator can be quickly replaced without disassembly of the valve. No flow reduction, full flow according to the versions DN20-DN32.

Actuator

• Power consumption:
• Relay on, motor running: 9 VA
• Relay on, motor in standby: 5 VA
• Relay off: 0 VA
• Ingress protection: II (EN60335-1)
• Ambient temperature: -10 °C ... +60 °C
• Operating voltage: 230 V~
• Load for limit switch: 5 (1) A, 240 V~
• Actuation time: 18 s / 90 °
• Operation mode: open - closed
• Torque: 6 Nm (max. 8 Nm)
• Electrical connection: 4 x 0,5 mm², L = 2.0 m
• Protection class: IP 44 / IEC 60529
• Limit switch: 5 (1)A, 240 VA
• Regulating angle: 90 °
• Torque: 6 Nm (max. 8 Nm) : Phase L, 1 (1) A

Valve

• Housing: forged brass
• Maximum operation temperature: 0 °C ... 110 °C
• Max. operating pressure: 6 bar
• Rotor with axle: brass
• Axle sealing: 4 x O-rings, EPDM
• Possibility of motor control: UV-3
• For reduction of axle friction: PA-plate
