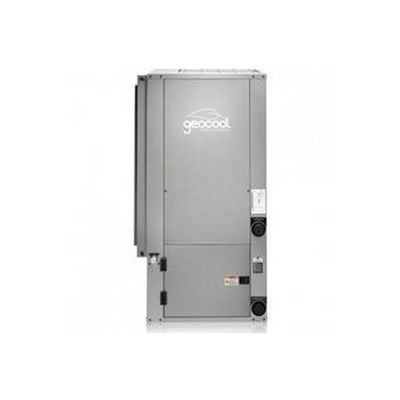

GeoCool - Model GCHPV048TGTANXX - 3 Ton Dual Stage Geothermal Unit
A top of the line product like the GeoCool GCHPV036 Geothermal Heat Pump Vertical Package Unit is an excellent example of the performance ground-source technology can routinely deliver. This unit is rated for up to 28.7 EER, an efficiency standard virtually no central air conditioner or heat pump can hope to match. To put geothermal performance in perspective, 28.7 EER is roughly equivalent to 33.0 SEER. The current government minimum is 14 SEER. Which means this GeoCool ground-source heat pump is approximately 2.3 times more efficient than a standard air conditioner.
It is loaded with durable components and quality parts to ensure long term operation. It comes standard with eco-safe R410A refrigerant, a variable-speed ECM DEC Star blower, Dallas Microprocessor, Flo-Link fittings, and a Copeland 2-Speed UltraTech Scroll Compressor. It also features freeze protection, condensate overflow switch, LED indicators, high and low pressure switches, easy access panels, and a sturdy cabinet.
- Model: GCHPV036TGTANXX
- Air Flow Direction: Upflow
- Avg Coverage Area: 1,500 - 1,800 Sq Ft
- Blower Motor: Variable Speed
- Compressor: Two Stage
- Cooling Capacity: 3 Ton
- EER: 28.7
- Electrical Phase: 1-Phase
- Heat Pump Efficiency (COP): 5.4
- HWG Connection: 1/2 inch
- Loop Connection: 1 inch
- Max Over current Protection: 45 amps
- Primary Heating Capacity: 35,001 - 40,000 BTU
- Product Height: 44
- Product Length: 32
- Product Width: 25.75
- Refrigerant: R-410a
- Voltage: 240
- Warranty: 10 Year Parts, 10 Year Compressor
- Weight: 315 lbs
