Seren - Model R301 MKII -300W 13.56MHz Generator with Low Harmonics

Forward Power Output: 300 Watts. Frequency: 13.56 MHz. Forward Power Accuracy: +1-2%. Harmonics: -50dBc.

Most popular related searches

Input Power: 100-240VAC, 47-63Hz, Single Phase (specify 120V or 240V power cord when ordering)
Output Connector: Type "N" Female
Interface Connectors: Serial: DB-9 Female; Analog: DB-25 Female
Pulsing: 0 -100 % Duty Cycle, 50 \is minimum pulse width
Cooling: Forced Air, 123 CFM (59.05 L/s)
CEX Input -(BNC): 5V Peak-to-Peak, nominal sine wave
CEX Output -(BNC): 6V Peak-to-Peak, nominal sine wave
SEMI-Third Party: SEMI F47, SEMI S2, SEMI S8
EMC & Safety - Third Party: FCC, CE and NRTL Certified

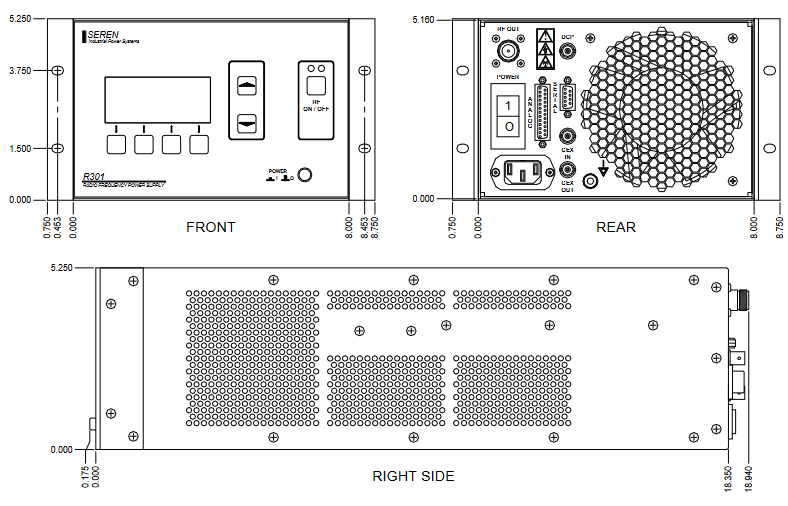

Dimensions -(H,W,D): 5.25" x 9.50" x 18.35" (13.33 x 24.13 x 46.6 cm)
Weight: 22.5 Lbs (10.2 kg)

Technical Data
