Rugged, double webbed frame design withstands wind, snow, and other mechanical stresses. Framed Glass–Backsheet aesthetic is ideal for high visibility installation.

Anti-Reflective

Premium solar glass with anti reflective coating delivers more energy throughout the day

High Reliability

Proven resistance to PID and reliable in high temperature and humidity environments.

Solar Cells: 60 Monocrystalline cells (158.75 x 158.75 mm)

Module Construction: Framed Glass–Backsheet

Dimensions (L x W x D): 1666 x 1001 x 40 mm (65.5 x 39.4 x 1.6 inch)

Weight: 19 kg (41.9 lbs)

Frame: Double Webbed 15-Micron Anodized Aluminum Alloy

Glass: 3.2mm Low-Iron Content, High-Transmission, PV Solar Glass with Anti Reflective Coating

Junction Box: IP68 Rated Junction Box with 3 Bypass Diodes

Output Cables: 1.2-meter (47.24-inch) Symmetrical Cables

Connectors: Multi-Contact (Staubli) MC4

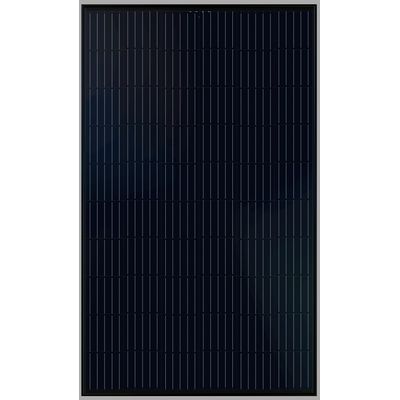

Heliene - Model 60M G1 -305W - 320W 60 Cell Monocrystalline Black Solar Modules

Features

Mechanical Data
