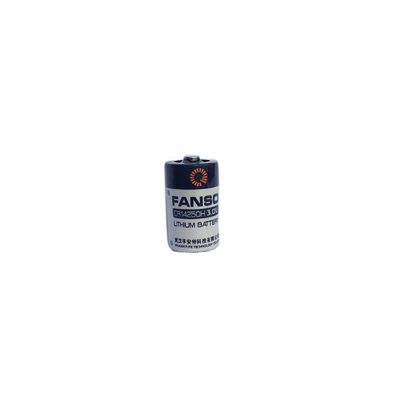

FANSO - Model CR14250H - 3.0V 850 mAh Primary Lithium Manganese Battery in 1/
Model No: CR14250H. IECSize: 1/2AA. Voltage(V): 3.0V. Weight(g): 12g. Current(mAh\mA): 850mAh. Max constant current(mA): 7mA. Operate Temp.CC): -40-70C. End voltage(V): 2.0V.
Most popular related searches
non-flammable electrolyte
backup power
lithium manganese battery
power electronic
lithium battery
high voltage operations
incineration
incinerator
- High and stable operating voltage;
- Long shelf life(Self-discharge rate less than 1% at 25℃);
- Long operating life;
- Wide temperature range;
- Stainless steel container and end caps;
- Hermetic glass-to-metal sealing;
- Non-flammable electrolyte;
- Compliant with IEC86-4 safety standard;
- Non-restricted for transport;
- High energy density(700kw/kg).
- Size：1/2AA；
- Dimension: Φ14.5mm*25.5mm;
- Weight: 12g;
- Capacity: 850mAh;
- (at 0.5mA,+25℃,2.0V cut off)
- Open circuit voltage: 3V
- Max continuous current: 7mA
- （at 25℃ 2.0V cut off, up to 50% of nominal capacity）
- Max pulse current:70mA;
- (15second pulses to 2.0V cut off, drained from half-discharged cells at 0.5mA, 25℃)
- Operating temperature: -40℃ ~ +70℃;
- Utility metering;
- Alarm and security devices;
- Memory back-up power;
- Professional electronics;
- Automotive electronics;
- Real-time clock;
- Tracking system.
Clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated.
Do not recharge, short circuit, crush, disassemble, heat above +100℃, incinerate,or expose contents to water. Dispose of used batteries properly in case of explosion, burn and leakage.
