Precision - Model V6 Series -30W Power Supply Module

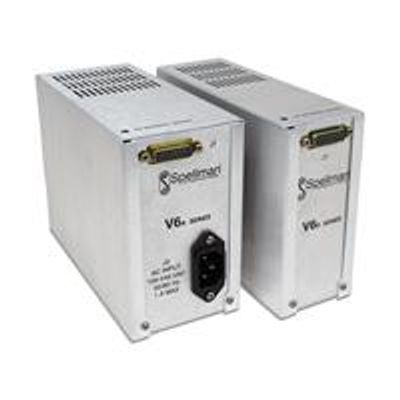

The precision high voltage V6 Series is a family of regulated, fixed output polarity modular precision high voltage power supplies which provide exceptional performance and value in many applications. The V6 Series precision high voltage power units are fully enclosed and designed for system or bench top operation. A wide range of output voltages, up to 30kV is available. The output voltage is controlled locally by an internal multi-turn potentiometer. Remote analog voltage or resistance programming capability is included in all models. Analog monitor outputs are also included for remote monitoring of both the high voltage and current outputs.
- Precision compact Models up to 30kV
- High Stability, Low Ripple and Noise
- Local and Remote Programming and Monitoring
- RoHS Compliant
The typical applications which the V6 Series precision high voltage power modules are used in are:
- Spectrometers
- CRT Testing
- Detectors
- E Beam Systems
- General Laboratory Usage
Input Voltage:
- AC Model: 100-240Vac, ±10%; 50/60 Hertz; 1 amp
- DC Model: 24Vdc ±10%, 2 Amps
Voltage Regulation:
- Line: ±0.005% of maximum 90-240Vac input line change.
- ±0.005% of maximum ±10%Vdc input line change Load: ±0.01% of maximum for 0 to maximum rated output current change
Current Regulation:
- Line: ±0.05% of maximum current for 90-240Vac input line change.
- 0.05% of maximum current for ±10% Vdc input change Load: 0.2% of maximum current for 0 to maximum rated output voltage change
Ripple:
- See “model selection” table
Temperature Coefficient:
- ≤ 50ppm/°C
Stability:
- ≤ 0.01%/hour, 0.02% per 8 hours after a 1/2 hour warm up
Operating Temperature:
- 0°C to +50°C
Storage Temperature:
- -40°C to +85°C
Humidity:
- 20% to 85%RH, non-condensing
Local Control:
- Internal multi-turn potentiometer for 0 to maximum output voltage (±0.2%)
Remote Programming:
- 0 to +5Vdc analog input signal proportional to 0 to maximum rated output. Accuracy is ±(0.1% of setting +0.1% of maximum). The programming input impedance is 20 megohms.
Voltage Monitor:
- 0 to +5V proportional to 0 to maximum output voltage. Accuracy is ±(0.1% of reading +0.1% of maximum). The monitor impedance is 10 kilohms.
Current Monitor:
- 0 to +5V proportional to 0 to maximum output voltage. Accuracy is ±(2.0% of reading +1.0% of maximum). The monitor impedance is 10 kilohms.
Enable:
- Remote interlock enables (low) disables internally (high) the high voltage output. Signal is normally high and supply will default to a disabled condition.
Current Limit:
- All units provide short circuit current limiting to less than 110% of the maximum rated output current. Supply is self restoring upon removal of cause limit condition.
Arc/Short Circuit:
- Short circuit and arc protected; self restoring.
Cooling:
- Convection cooled
Output Connector:
- Models up to and including 5kV use a Spellman P/N JAC high voltage connector. The required mating connector is a Spellman P/N 105808-384, which is provided. The 10kV through 30kV units use a Spellman P/N JGP high voltage connector (Alden 8101). All 10 through 30kV units are 1 provided with mating connectors assembled to 2.0 meters 2 of high voltage cable.
Dimensions:
- AC Model: 3.05. W X 5.1. H X 7.06. D (77mm X 132mm X 179mm)
- DC Model: 2.32. W X 5.1. H X 7.06. D (59mm X 132mm X 179mm)
Weight:
- AC Model: 4.5 pounds (2.0kg)
- DC Model: 3.75 pounds (1.7kg)
Regulatory Approvals:
- Compliant to EEC EMC Directive. Compliant to EEC Low Voltage Directive. UL/CUL recognized, File E227588. RoHS Compliant.
OPTIONS
- RS - RS-232 Interface
