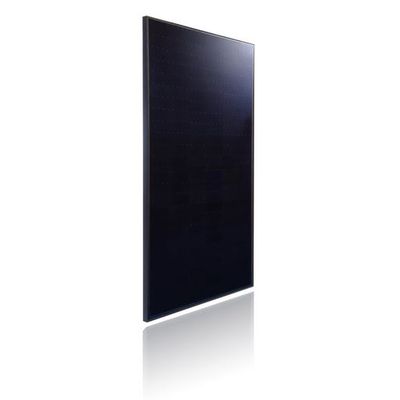

Zebra - Model FU340-350M – All Black -340-350 Watt - 120 Back Contact Monocrystalline PV Modules
FromFuturaSun Srl
Zebra is a new series of back contact monocrystalline PV modules with 120 IBC half-cut cells (340-350 Watt) particularly suitable for home solar systems. Thanks to higher efficiency, a greater total peak power can be achieved from a limited roof surface. The elegant total black design, with black backsheet and black frame, is currently reaching a power up to 350 Watt. The superior esthetical appearance makes the panel particularly suitable for residential applications and buildings with a high architectural value.
Most popular related searches
monocrystalline photovoltaic module
photovoltaic module
domestic solar system
junction box
domestic solar
photovoltaic panel
- IBC – Interdigitated Back Contact cells
- Innovative Zebra technology developed in Europe
- Superior module efficiency up to 20.69%
- Total black look without ribbons on the cells
- Excellenttemperature coefficient -0.3%/°C
- 2 independent section design secures a higher energy yield in case of shading
- Immunity to LID (Light Induced Degradation) and LeTID
(Light and elevated Temperature Induced Degradation) - Half cut design reduces internal resistance increasing power output
- Thanks to IBC technology no shading on the cell
- Maximum light absorption
- NEW: Product Liability insurance
- IEC 61215:2016 – IEC 61730:2016 & Factory Inspection*
- Fire Resistance – Class C
- Salt Corrosion Resistance
IEC 61701
- Dimensions 1685 x 1004 x 35 mm
- Weight 19.5 kg
- Temperature coefficient Pmax -0,300 %/°C
- NMOT 42 °C
- Junction box Certified according to IEC 62790, IP 68 approved
