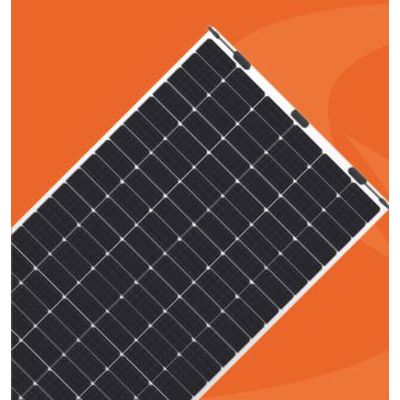

Sunport - Model S6 II - 340-360W MWT Mono PERC Flexible PV Module

BIPV Application
Further integrate with buildings in terms of shape and installation for BIPV application

High Reliability
Conductive back sheet 2D encapsulation without soldering, resulted lower degradation under multiple extreme testing condition

Ultra Flexible
Ultra-thin silicon wafers with advanced organic polymer encapsulation materials

High Efficiency
MWT back contact cell and modules with busbar-free design and higher efficiency

Lead Free
Eco-friendly PV design achieves Lead-free MWT module without soldering materials

Nominal Module Operating Temperature: 43±2^oc
Temperature coefficient of Pmax: -0.36%/^oc
Temperature coefficient of Voc: -0.28%/^oc
Temperature coefficient of Isc: 0.06%/^oc

Actual Module Dimension(L×W): 1728.9mmx981.5mm
Module Installation Dimension(L×W×H): 1840mmx1040mmx1.4mm
Weight: 4.7kg
Back material: Back Sheet(white)
Cell (quantity / material / type / dimensions): 21*6/ Monocrystalline / 162.75mm
Encapsulant: EVA
Frame: None
Junction box(protection degree): IP68
Cable (length/cross-section area): customizable / 4mm2
Connector: MC4 Compatible

Max. system voltage: DC1500V(IEC)
Max. series fuse rating: 15A
Operating temperature range: -40?~+85?
