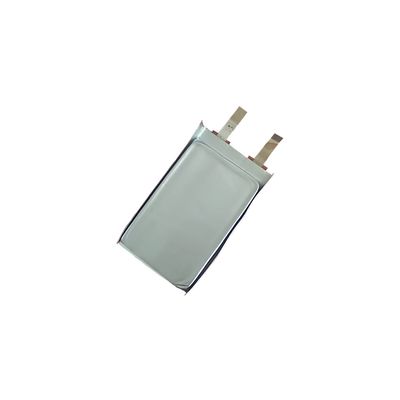

Fanso - Model CP802283 - 3400 Lithium Manganese Dioxide Battery
Model No: CP802283. IEC Size:. Voltage(V): 3.0. Weight(g): 26. Current(mAh\mA): 3400m,*h. Max constant current(mA): 1200mAh. Operate Temp-CQ: -40-60. End voltage(V): 1.8V.
Most popular related searches
non-flammable electrolyte
backup power
lithium manganese battery
power electronic
cell operating temperature
high voltage operations
lithium battery
incineration
incinerator
- Dimension: 8.0*22.0*83.0mm;
- Weight:26g;
- Capacity: 3400mAh;
- (at 3mA,+25℃, 1.8V cut off)
- Open circuit voltage: 3V
- Max continuous current: 1200mA
- （at 25℃1.8V cut off, up to 50% of nominal capacity）
- Max pulse current:2500mA;
- (15second pulses to 1.8V cut off, drained from half-discharged cells at 25℃)
- Operating temperature: -40℃ ~ +60℃;
- High and stable operating voltage;
- Long shelf life(Self-discharge rate less than 1% at 25℃);
- Long operating life;
- Wide temperature range;
- Stainless steel container and end caps;
- Hermetic glass-to-metal sealing;
- Non-flammable electrolyte;
- Compliant with IEC86-4 safety standard;
- Non-restricted for transport;
- 1High energy density(700kw/kg).
- Utility metering;
- Alarm and security devices;
- Memory back-up power;
- Professional electronics;
- Automotive electronics;
- Real-time clock;
- Tracking system.
Clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated.
Do not recharge, short circuit, crush, disassemble, heat above +100℃, incinerate,or expose contents to water. Dispose of used batteries properly in case of explosion, burn and leakage.
