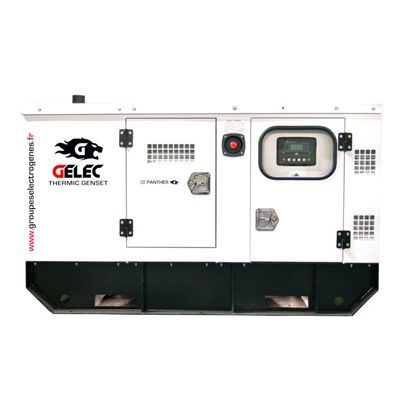

Gelec - Model PANTHER-35YD -35 KVA Diesel Generator
PRP : Prime Rated Power : 31 kVA / 24,8 kW; ESP : Emergency Standby Power : 35 kVA / 28 kW; Voltage : 230-400V; Power factor : 0.8 (cosΦ); Rotation speed : 1500 rpm; Number of phases : 3; Frequency : 50 Hz; Fuel tank autonomy at 75% : 13 hours.
- ESP Power 35 kVA
- PRP Power 31 kVA
- Rotation speed 1500 rpm
- Fuel tank capacity 130 Liters
- Number of cylinders 4
- Autostart integrated
- Available in Three phase44,8A
Alternator specifications :
Excitation system : Self Excited
AVR : Stamford
Voltage regulation type : electronic
Engine specifications :
Number of cylinders : 4
Governor type : mechanical
Specifications : 4-cycle engine, direct fuel injection , liquid-based cooling
Displacement : 3,7 L
Maximum standby power at rated rotation 1500tr/min : 28 kW
Maximum standby power at rated rotation 1500tr/min : 38,1 Cv
Compression ratio : 17:01
Engine starting type : electrical 24V
Air inlet system : atmospheric
From the PANTHER range, this 35 kVA genset is available in single-phase and three-phase versions and is fitted with automatic start-up in the event of an outage. It produces a stable electricity supply in both primary and back-up power mode. It is able to power houses, offices, farms, workshops and all kinds of electrical devices such as cranes, concert equipment, milking robot, fairground rides, cold rooms… and, combined with a lighting tower, can provide light for night construction work.
This genset is equiped with four poles thermal magnetic circuit breaker with ajustable differential switches, with a DEEPSEA control panel and with an integrated automatic transfer switch system.
OPTIONS:
For enhanced mobility, discover the trailer-mounted genset version.
Simultaneous production of thermal and electrical energy is now possible by selecting the B100 option.
The B100 option enables your genset to operate using crude or recycled oil.
1-year warranty or 500 hours, whichever comes first.
