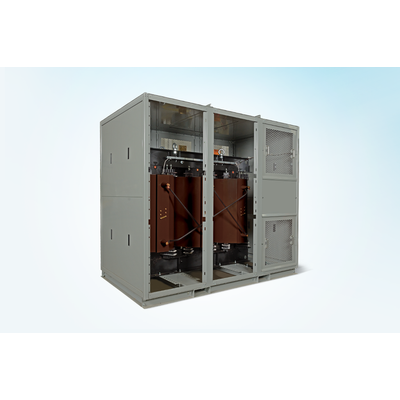

HPS EnduraCoil - Model E - 35kV Class Cast Resin Coil Transformers
The HPS EnduraCoil™ is a high-performance cast resin solution engineered for demanding applications and diverse environments. These coils are meticulously wound using copper or aluminum conductors, ensuring electrical balance to mitigate axial forces during short-circuit conditions. The structure is reinforced with fiberglass and uses mineral-filled epoxy to achieve a void-free resin impregnation across the entire insulation system. This construction enhances durability and reliability, providing a robust solution for electrical systems operating up to 35kV. The product comes with a 1-year warranty and is supported by extensive technical resources, including detailed product catalogs, specification sheets, and installation manuals, ensuring comprehensive technical support for users.
- Meets North American Energy Efficiency Standards: U.S. - DOE 10 CFR Part 431 (DOE 2016); Canada - SOR/2018-201, Amd. 14 (NRCan 2019) & ON Reg. 404/12; Mexico - NMX-J-351-ANCE-2021
- kVA ratings from 300 to 3000ANN, 4000AFN; IEC 60076
- High voltage (primary) ratings up to 34.5 kV Class; up to 150 kV BIL (BIL per CSA and IEEE/ANSI standards)
- Standard taps +/- 2.5%, +/- 5%
- Low voltage (secondary) ratings of 208Y/120V to 600Y/347V & 2.4-5kV up to 60kV BIL
- Frequency 50, 60 or 50/60 Hz
- Insulation systems: 150°C (155°C per IEC 60076); 180°C (185°C per IEC 60076)
- Standard 80°C or 115° rise (others on request)
- Type 1, 3/3R, 4/4X or 12 available. Type 3RE Plus enclosures available for improved outdoor performance.
- Choice of copper or aluminum winding material
- Coil format choice of either cast primary/cast secondary or cast primary/VPI secondary
- Approvals: CSA - C22.2 No. 47 & C9-02; UL - UL 1562, up to 3 MVA (higher ratings available on request)
HPS EnduraCoil™ is a high-performance cast resin product designed for many demanding and diverse applications. Coils are precision wound with copper or aluminum conductors that are electrically balanced to minimize axial forces during short-circuit conditions. They are formed with mineral-filled epoxy, reinforced with fiberglass and cast to provide complete, void-free resin impregnation throughout the entire insulation system.
- Designed for indoor or outdoor applications
- Encapsulated cast resin windings are durable for the most demanding environments typically found in marine, pulp & paper and petrochemical industries
- Minimal maintenance required beyond removing surface contaminants such as dirt
- Compact design fits more easily into confined spaces
- Greater resistance to short circuits
- Self-extinguishing in the unlikely event of fire
- Environmentally friendly
