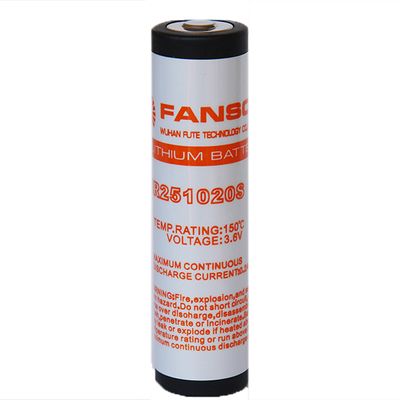

Fanso - Model ER251020S -3.6V Lisocl2 3.6V Battery CC Size High Temperature
Model NoER251020S. IECSize: CC. Voltage(V): 3.6V. Weight(g): lOOg. Current(mAh\mA): 14000mAh. Max constant current(mA): 200mA. Operate Temp.(°C): -20°C~+ 150°C. End voltage(V): 2.0V.
Most popular related searches
Li/SOCl2 Battery
lithium-thionyl chloride battery
backup power
cell operating temperature
power electronic
lithium thionyl chloride battery
incineration
incinerator
battery temperature
- Size： CC；
- Dimension: Φ24.8mm*102.0mm;
- Weight: 100g;
- Capacity: 14000mAh;
- (at 100mA,+150℃,2.0V cut off)
- Open circuit voltage: 3.6V
- Max continuous current: 200mA
- （at 150℃ 2.0V cut off, up to 100% of nominal capacity）
- Max pulse current: 400mA;
- (400mA/0.1s pulse, drained every 2 minutes at 150℃ from 20mA mid-charged cells with 20μA base current, yield voltage readings above 2.7V, the readings may vary according to the pulse characteristics, the temperature, and the cells previous history.)
- Operating temperature: -20℃ ~ +150℃;
- Utility metering;
- Alarm and security devices;
- Memory back-up power;
- Professional electronics;
- Automotive electronics;
- Real-time clock;
- Tracking system.
Clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated.
Do not recharge, short circuit, crush, disassemble, heat above +100℃, incinerate,or expose contents to water. Dispose of used batteries properly in case of explosion, burn and leakage.
