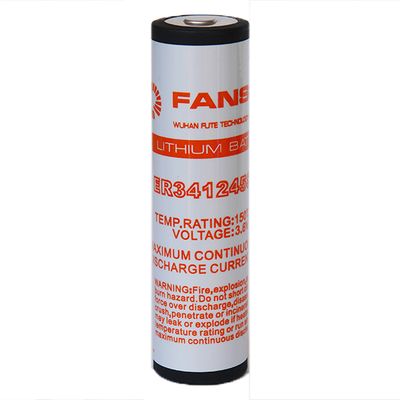

Fanso - Model ER341245S - 3.6V Lisocl2 3.6V Battery DD Size High
Model No: ER34124SS. IEC Size: DD. Voltage(V): 3.6V. Weight(g): 220g. Current(mAh\mA): 30000mAh. Max constant current(mA) : 300mA. Operate Temp.(°C): -20°O+ 150°C. End voltage(V): 2.0V.
Most popular related searches
Li/SOCl2 Battery
lithium-thionyl chloride battery
backup power
cell operating temperature
power electronic
incineration
incinerator
- Size：DD；
- Dimension: Φ33.5mm*124.5mm;
- Weight: 220g;
- Capacity: 30000mAh;
- (at 50mA,+150℃,2.0V cut off)
- Open circuit voltage: 3.6V
- Max continuous current: 300mA
- （at 150℃ 2.0V cut off, up to 100% of nominal capacity）
- Max pulse current:300mA;
- (300mA/0.1s pulse, drained every 2 minutes at 150℃ from 50mA mid-charged cells with 20μA base current, yield voltage readings above 2.7V, the readings may vary according to the pulse characteristics, the temperature, and the cells previous history.)
- Operating temperature: -20℃ ~ +150℃
- Utility metering;
- Alarm and security devices;
- Memory back-up power;
- Professional electronics;
- Automotive electronics;
- Real-time clock;
- Tracking system.
Clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated.
Do not recharge, short circuit, crush, disassemble, heat above +100℃, incinerate,or expose contents to water. Dispose of used batteries properly in case of explosion, burn and leakage.
