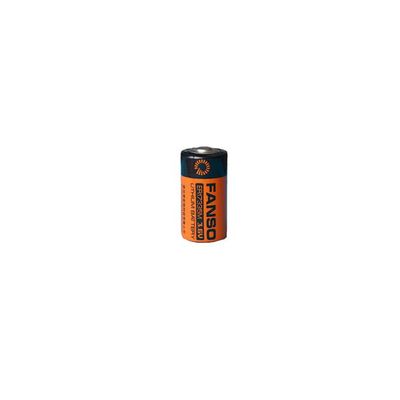

Fanso - Model ER17335M - 3.6V Spiral Primary Lithium 2/3 Size Battery Which C
Model No: ER17335M. IECSize: 2/3A. Voltage(V): 3.6V. Weight(g): 19g. Current(mAh\mA): 1700mAh. Max constant current(mA): 200mA. Operate Temp.(°C): -55°C~+85°C. End voltage(V): 2.0V.
Most popular related searches
Li/SOCl2 Battery
non-flammable electrolyte
lithium-thionyl chloride battery
backup power
power electronic
high voltage operations
incineration
incinerator
lithium battery
- High and stable operating voltage;
- Long shelf life(Self-discharge rate less than 1% at 25℃);
- Long operating life;
- Wide temperature range;
- Stainless steel container and end caps;
- Hermetic glass-to-metal sealing;
- Non-flammable electrolyte;
- Compliant with IEC86-4 safety standard;
- Non-restricted for transport;
- 1High energy density(700kw/kg).
- Size：2/3AA
- Dimension: Φ17.0mm*33.5mm;
- Weight: 19g;
- Capacity: 1700mAh;
- (at 1mA,+25℃,2.0V cut off)
- Open circuit voltage: 3.6V
- Max continuous current: 200mA
- （at 25℃ 2.0V cut off, up to 50% of nominal capacity）
- Max pulse current: 400mA;
- (100mA/0.1s pulse, drained every 2 minutes at 25℃ from 1mA mid-charged cells with 20μA base current, yield voltage readings above 2.7V, the readings may vary according to the pulse characteristics, the temperature, and the cells’s previous history.)
- Operating temperature: -55℃ ~ +85℃;
- Utility metering;
- Alarm and security devices;
- Memory back-up power;
- Professional electronics;
- Automotive electronics;
- Real-time clock;
- Tracking system.
Clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated.
Do not recharge, short circuit, crush, disassemble, heat above +100℃, incinerate,or expose contents to water. Dispose of used batteries properly in case of explosion, burn and leakage.
