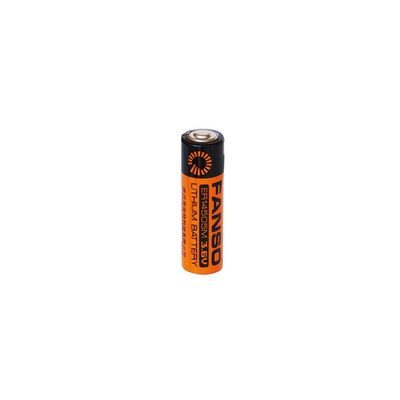

Fanso - Model ER14505m - 3.6V Spiral Primary Lithium AA Size Battery li-Socl

1. High and stable operating voltage;
2. Long shelf life(Self-discharge rate less than 1% at 25℃);
3. Long operating life;
4. Wide temperature range;
5. Stainless steel container and end caps;
6. Hermetic glass-to-metal sealing;
7. Non-flammable electrolyte;
8. Compliant with IEC86-4 safety standard;
9. Non-restricted for transport;
10. 1High energy density(700kw/kg).

• Size：AA；
• Dimension:  Φ14.5mm*50.5mm;
• Weight: 19g;
• Capacity: 2100mAh;
• (at 1mA,+25℃,2.0V cut  off)
• Open circuit voltage: 3.6V
• Max continuous current: 300mA
• （at 25℃ 2.0V cut  off, up to 50% of nominal capacity）
• Max pulse current: 1000mA;
• (100mA/0.1s pulse, drained every 2 minutes at 25℃ from 1mA mid-charged cells with 20μA base current, yield voltage readings above 2.7V, the readings may vary according to the pulse characteristics, the temperature, and the cells’s previous history.)
• Operating temperature: -55℃ ~ +85℃;

• Utility metering;
• Alarm and security devices;
• Memory back-up power;
• Professional electronics;
• Automotive electronics;
• Real-time clock;
• Tracking system.

Clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated.

Do not recharge, short circuit, crush, disassemble, heat above +100℃, incinerate,or expose contents to water. Dispose of used batteries properly in case of explosion, burn and leakage.
