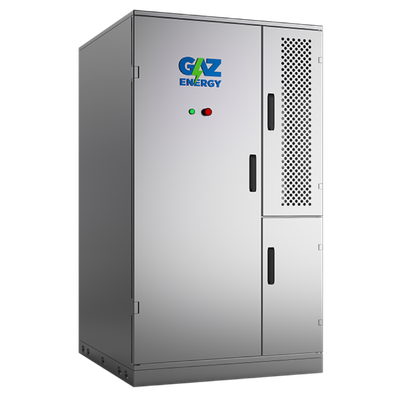

GAZ Geräte - Model GL280 1P52S-8S -373 kWh Liquid-Cooled Outdoor Cabinet
The 373 kWh Liquid-Cooled Outdoor Cabinet by GAZ Geräte- und Akkumulatorenwerk Zwickau GmbH is designed to optimize energy consumption in industrial power networks. This energy storage solution features a modular design, scalable between 186 kWh to 373 kWh, catering to diverse needs such as mid-size off-grid photovoltaic installations and commercial or industrial facilities with significant energy demands. The cabinet's cooling system ensures enhanced heat dissipation, crucial for maintaining the operational efficiency and longevity of the batteries. It incorporates advanced safety mechanisms to mitigate potential risks associated with energy storage systems. The design aligns with sustainable development goals, including robust strategies for recycling and resource conservation, thus minimizing environmental impact. The cabinet is part of the company's commitment to delivering reliable and high-quality energy solutions, underpinned by ongoing technological innovation.Most popular related searches
outdoor cabinet
energy storage
lithium battery
renewable energy storage
off-grid photovoltaic
grid photovoltaic system
energy storage system
energy consumption
power network
industrial power
- Designed for renewable energy storage in industrial facilities
- High return on investment thanks to latest technology and maximal utilization of space, modular design for scalability
- CE/UL certified Thermal Management System connected to chiller and dehumidifier
- Per-cell monitoring
- Additional proprietary sensors to detect electrolyte or gas leakage
- Smoke and heat detector
- Aerosol fire suppression system
- Vent panel with pressure relief port
- Mid-size off-grid PV or other renewables installations
- Commercial and industrial facilities with higher energy consumption
- Product : Liquid-cooled Outdoor Cabinet
- Model : GL280 1P52S-8S
- Battery Cell : LFP-280Ah
- Nominal DC voltage (V) : 1331
- Rated Energy (kWh): 372,6
- Nominal Power (kW) : 186,4
- Max. Efficiency (%) : RTE ≥ 96 % at 0,5C
- Charge Temperature (℃) : 0 °C ~ 55 °C
- Discharge Temperature (℃) : -30 °C ~ 55 °C
- IP Rating : IP54
- Dimensions (W*D*H) : 1320*1395*2310 mm
- Weight (kg) : 3600
- Battery Standards and Regulations : UN 38.3, UL 1973, UL 9540A
- IEC 62619, IEC 61000, IEC 62477
- Regulation (EU) 2023/1542
